QNAP Storage USB 3.2 Gen 2 Expansion Card
Up to 10Gbps Speeds for Fast File Transfer and Storage Expansion
QNAP offers a variety of accessories to enhance the performance and functionality of your need.
All Accessories can be found on their respective product pages or you can purchase them below. Can't find the part you are looking for? Contact us today!
- Pricing and product availability subject to change without notice.
NAS with a PCIe slot, Windows 8.x/10, Ubuntu 20.04 LTS Note: 1. Minimum QTS 4.3.6 requirement. 2. USB cable is not included. 3. Follow the compatibility guide: https://www.qnap.com/en/compatibility/
Our Price: $65.00

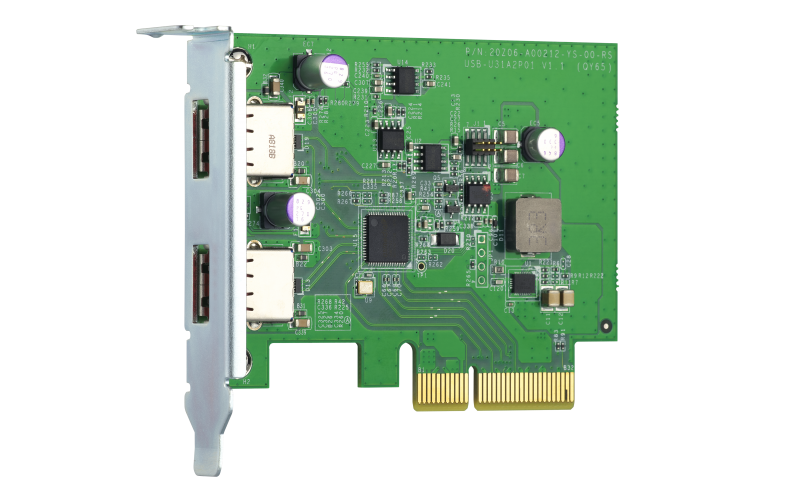

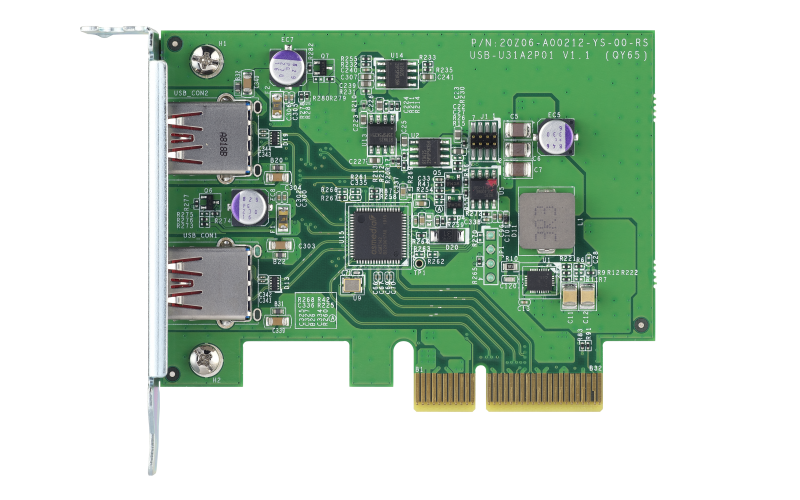

The QNAP USB 3.2 Gen 2 Expansion Card provides speeds of up to 10Gbps – double that of USB 3.2 Gen 1 – to greatly boost data transfer speeds. With two ports, the QNAP USB 3.2 Gen 2 Expansion Card provides compatibility with newer, faster USB 3.2 Gen 2 devices to accelerate file transfers and backup. The QNAP USB 3.2 Gen 2 Expansion Card can be installed in either a QNAP NAS or Windows®/Ubuntu® PC.
Dual-port USB 3.2 Gen 2 Type-A connectivity. Both ports provide up to 10 Gbps data transfer speeds and are backwards compatible with previous-generation USB devices.
Supports USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer.
Uses advanced low-power processes, following standard PCIe/USB bus Power Management to reduce power consumption.
Supports overcurrent detection and short circuit protection.
Supports Windows 8.x / 10 (32/64-bit) and Ubuntu desktop 20.04 LTS. No driver is required.
Expand your Storage by Connecting to a QNAP USB JBOD
By using a QNAP USB 3.2 Gen 2 Expansion Card in your QNAP NAS or PC, you can connect a QNAP USB JBOD to back up and expand your storage. The USB 3.2 Gen 2 Expansion Card supports both QNAP NAS and Windows®/Ubuntu® PCs without requiring drivers. You can configure RAID and monitor disk health using the QTS/QuTS hero Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP JBOD Manager utility on your computer.
NAS Expansion: Install the QNAP USB 3.2 Gen 2 Expansion Card and connect to a QNAP USB JBOD device, adding additional storage capacity with up to 10Gbps transmission speeds.
PC Expansion: Install the QNAP USB 3.2 Gen 2 Expansion Card and connect to a QNAP USB JBOD device to take advantage of a 10Gbps DAS solution.
|USB 3.2 Gen 2 dual-port PCIe expansion card
Connectors: 2 x USB Type-A
USB Host Controller: ASMedia ASM3142
PCIe and Lanes: PCIe Gen2 x 2

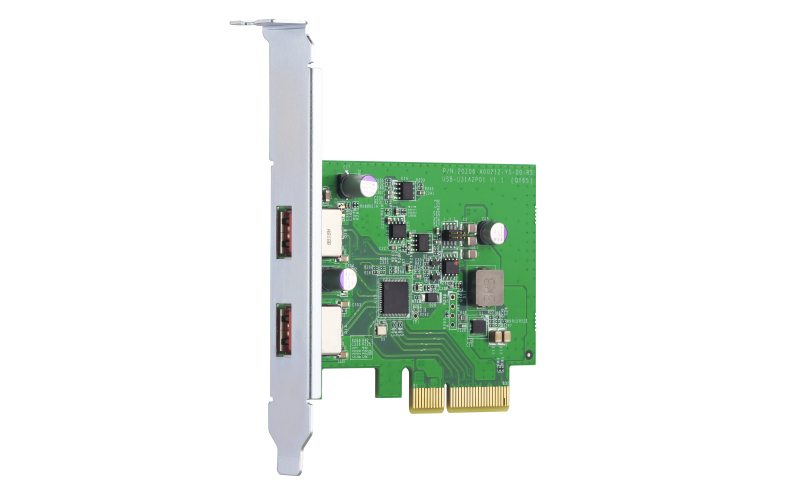

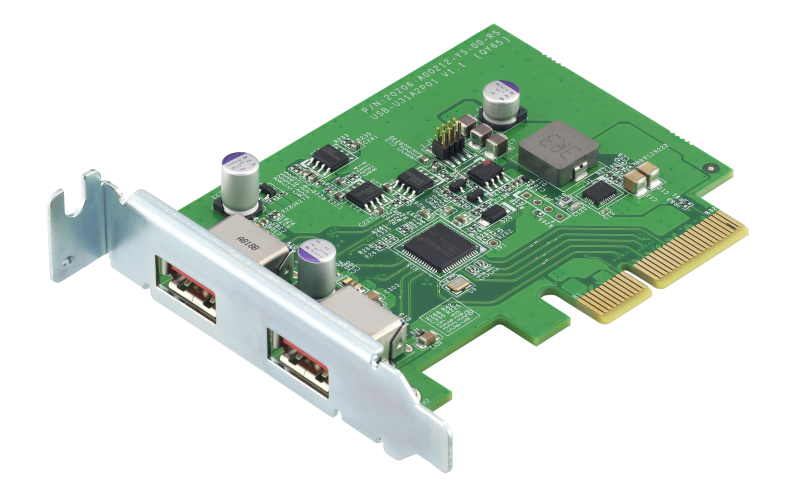

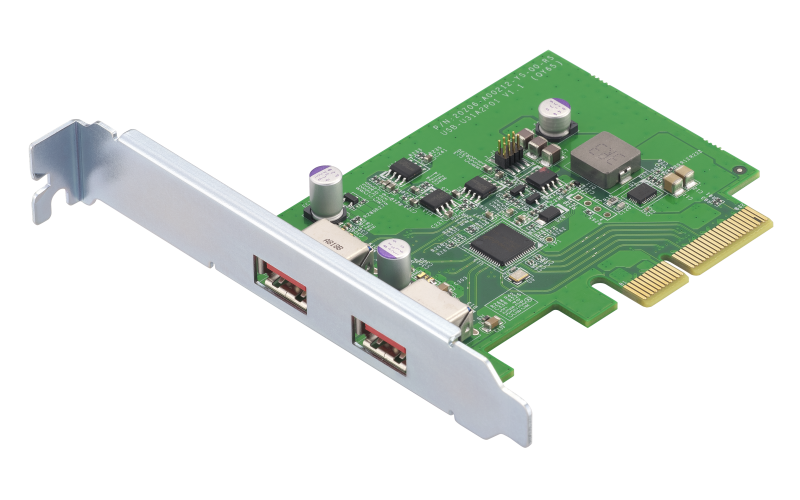

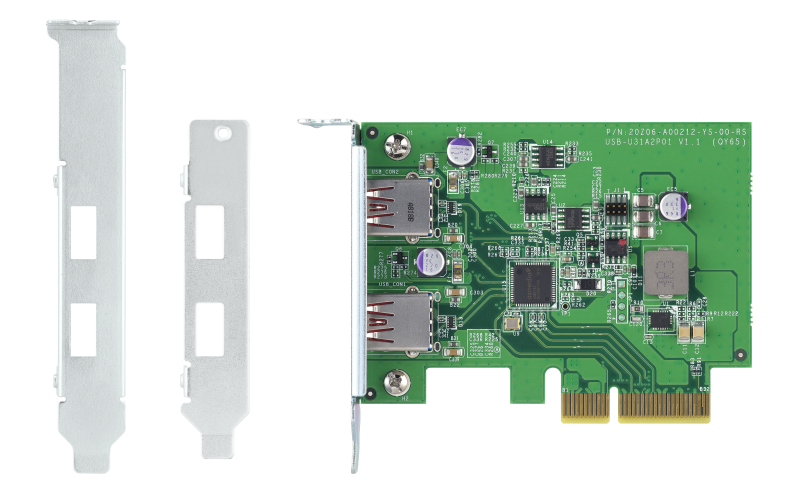

Bracket: Low-profile pre-installed. Low-profile and Full-height are included.
Form factor: Low-profile 89.65 x 68.9 x 14 mm (Without bracket) Working temperature: 0 ~ 40 ºC (32 ~ 104ºF)
Working humidity: 5 ~ 95% RH
Supported operating systems:
