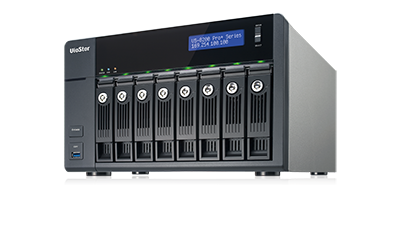

The QNAP VS-8248 Pro+ VioStor NVR is a SMB-grade; tower-based network surveillance server that supports high quality real-time video/audio monitoring, megapixel recording (up to 10 megapixels), and playback from multiple IP cameras. The VioStor VS-8248 Pro+ is a dependable NVR to safeguard your precious property and assets.
- 450 Mbps for recording and playback from multiple megapixel cameras
- HDMI output delivers up to 500fps Full HD local display
- Simultaneously handles inputs from up to 48 megapixel cameras
- Large capacity to ensure continuous high-resolution video recording
- Install free QSCM Lite from App Center to enjoy advanced CMS features
- VS-8248 Pro+
- 2 x Ethernet Cables
- 1 x Power Cords
- 32 x Flat Head Screws (for 3.5" HDD)
- 32 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
Ultra high performance
Powered by Dual-core Intel® Core™ i3 processor and 8GB of DDR3 memory, the VS-8248 Pro+ is capable of recording videos from up to 24 IP cameras, delivering exceptional performance with up to 450 Mbps throughput to ensure stable recording of multiple megapixel IP cameras.

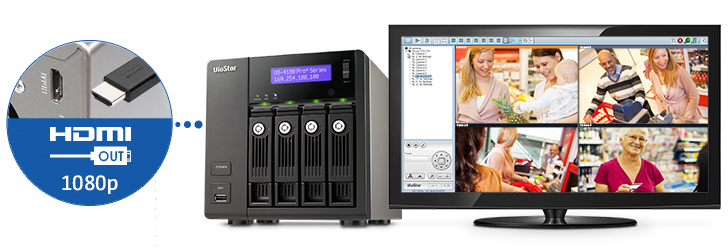

PC-less network surveillance by full HD local display via HDMI connector
Even without a PC, the VS-8248 Pro+ can be configured and perform monitoring tasks with the local display technology by connecting a USB mouse, USB keyboard and HDMI monitor to deliver lag-free live video monitoring in Full HD (1920x1080) resolution. QNAP local display technology provides a straightforward way to reduce the total costs in your business environment.

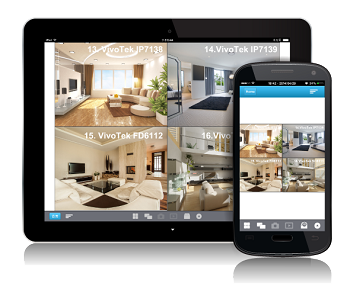

Anytime anywhere surveillance with a mobile app
Vmobile is an official mobile app that enables you to monitor QVR anytime, anywhere. Using iOS and Android devices, Vmobile provides camera live-view, PTZ control, instant event notifications, video snapshot, video playback, and searching for videos by date and time. Another mobile app, Vcam, allows you to turn your mobile device into a network camera and to directly save recordings to your VioStor NVR for portable surveillance options.

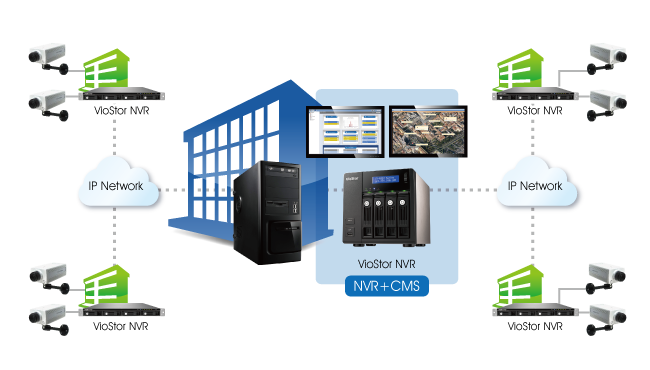

Turn your NVR into a CMS server
QSCM Lite is a free app provided by QVR that allows you to easily deploy up to 16 QNAP NVRs and 256 cameras and conduct central monitoring, playback, and management. With no extra server hardware required, QSCM Lite can easily turn the VS-8248 Pro+ into a CMS server. The powerful and pioneering QSCM Lite can be freely downloaded from the integrated NVR App Center.

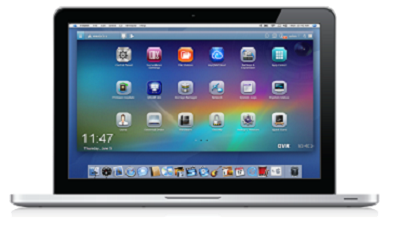

Intuitive, zero learning
Unlike traditional NVR software that can be hard to use, QVR 5.1 is free from complicated options and terminology, offering an innovative desktop design to compliment smooth working efficiency. The multi-window design allows concurrent multi-tasking, and enables administrators to easily switch between tasks to increase their productivity.

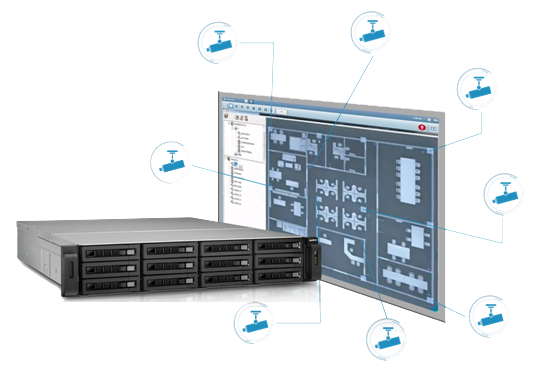

Multiple IP camera management comes easy
You can directly configure IP camera recording schedules when needed without leaving the Live-view page, maintain a seamless monitoring so you won’t miss any suspicious events. You can also visualize IP camera deployment with the E-map function. Just upload the pictures of the monitored locations, drag and drop the IP camera icons to the right place on the E-map, and you can easily monitor your surveillance deployment at a glance.

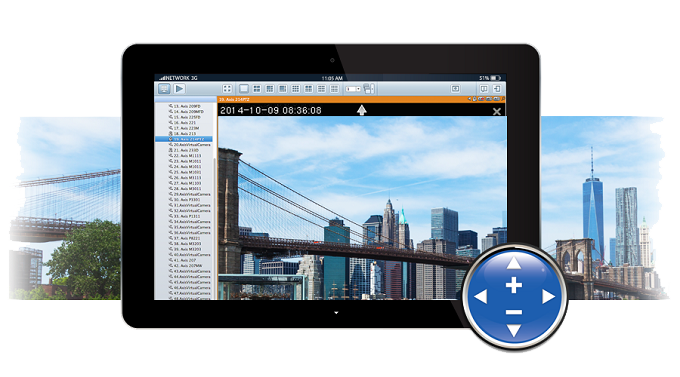

Cruise for wider areas, zoom in for greater detail
With QVR system, users can easily manage & monitor multiple IP cameras in a real-time basis using web browsers, and attain the first-hand status of monitored corners. You can directly adjust the PTZ (Pan/Tilt/Zoom) functions of supported cameras, flexibly monitoring every desired corner and detail. Auto-cruising is also supported to allow you to define preset positions for PTZ cameras to automatically adjust their monitoring angles to preset positions by the time interval.

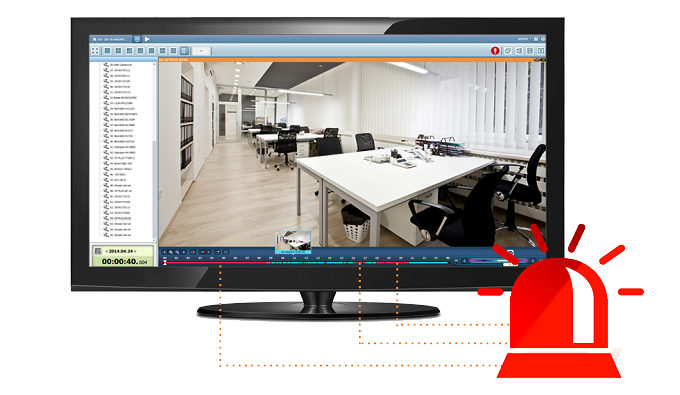

Find out the critical recordings without the hassle
How to find suspicious alarm recordings from huge amount of recordings can be a challenge. QVR 5.1 provides an intuitive playback interface to you to easily distinguish between regular and alarm recordings in the timeline bar. For greater efficiency, you can also enable Intelligent Video Analytics (IVA) to quickly search videos corresponding to particular modes (includes motion detection, foreign/ missing object, out of focus, and camera occlusion) to screen for critical recordings.
Optimize your video watching experience with video transcoding
The transcoding capabilities of the VS-8248 Pro+ allows users a practical solution for watching videos stored in centralized locations via the Internet when they have low-bandwidth connections. This feature adapts to bandwidth limits and/ or devices that lack the hardware or codecs to play video files by converting a video file to a lower resolution before transferring it across the Internet. The original high definition video is still retained without any changes being made to it, balancing the whole surveillance system for local recordings and remote playback.
The VS-8248 Pro+ supports comprehensive RAID configurations and hot-swapping to allow replacing hard drives without interrupting system operations. QNAP’s advanced RAID recovery technology also assists if any healthy drives are accidentally removed from a degraded RAID volume. The system can be recovered to degraded mode by reinserting the wrongly removed hard drives so the data can still be accessible. The Global Hot Spare function also allows a drive to automatically replace a failed drive in a RAID volume, preventing data from being lost.
|| Dual-core Intel Core i3-4150 3.5 GHz Processor
|| System memory: 8 GB DDR3 RAM
|| 512MB DOM
|| 8 x 3.5” SATA 6Gb/s, SATA 3Gb/s hard drive
NOTE: The standard system is shipped without hard drives.
|Hard Drive Tray
|| 8 x hot-swappable and lockable tray
|| 4 x Gigabit RJ-45 Ethernet port
|| Status, LAN, USB, hard drive LEDs
|| 3x USB 3.0 port (front: 1, rear: 2)
2x USB 2.0 port (rear)
Front: for USB storage device (One touch auto video backup)
Rear: for UPS device
|| System: Power button, one touch auto video backup button, reset button
|| Mono-LCD display with backlight
Enter button, Select button for configuration
|| System warning
|| 185.2 (H) x 298.2 (W) x 235.4 (D) mm
7.29 (H) x 11.74 (W) x 9.27 (D) inch
|| 7.83 kg/ 17.26 lbs (Net)
8.9 kg/ 19.62 lbs (Gross)
|| Temperature 0~40˚C/ 32~104˚F
Humidity 5~95% RH non-condensing, wet bulb: 27˚C.
|| 83.81W Write/Read
(with 8 x WD WD20EFRX hard drive installed)
|| K-Lock security slot for theft prevention
|| 1x HDMI
|| 2 x quiet cooling fan (12 cm, 12V DC)
|| Sound pressure (LpAm): 23.1 dB(A)
|| CE, FCC, VCCI, BSMI, C-Tick
|| Input: 100-240V AC, 50/60Hz,
Datasheet for QNAP VS-8248 Pro+ is coming soon.
