Overview:
Cost-effective entry-level 10GbE Switch with 5-Speed 10GBASE-T/ NBASE-T and Gigabit Ethernet

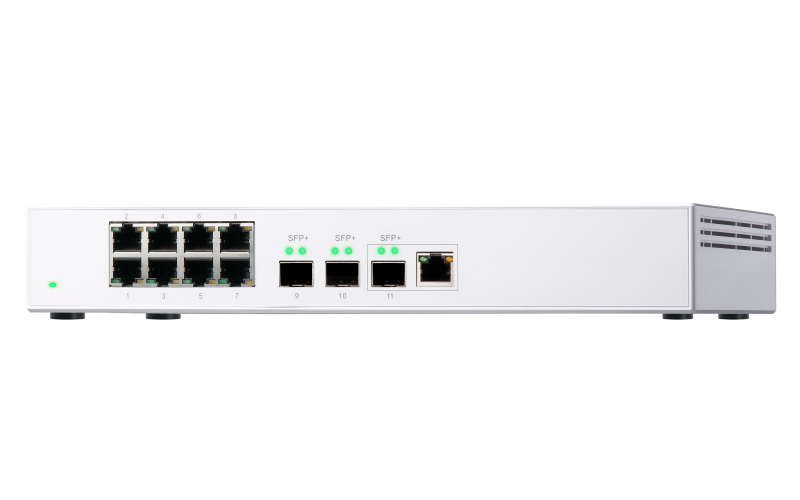

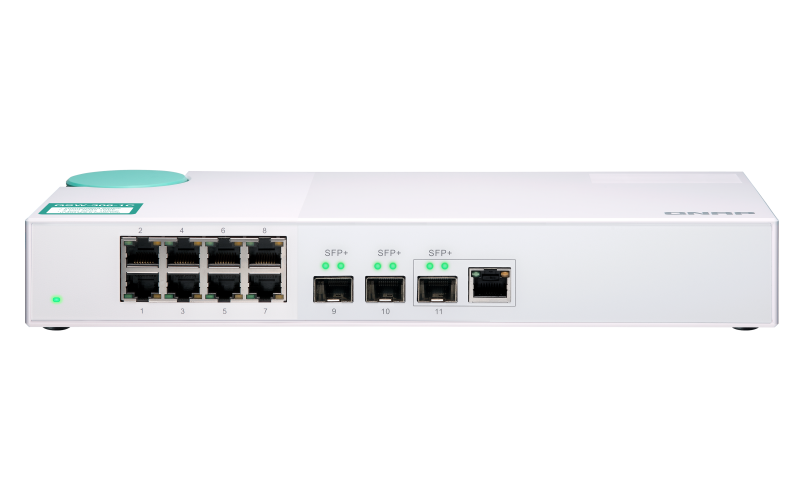

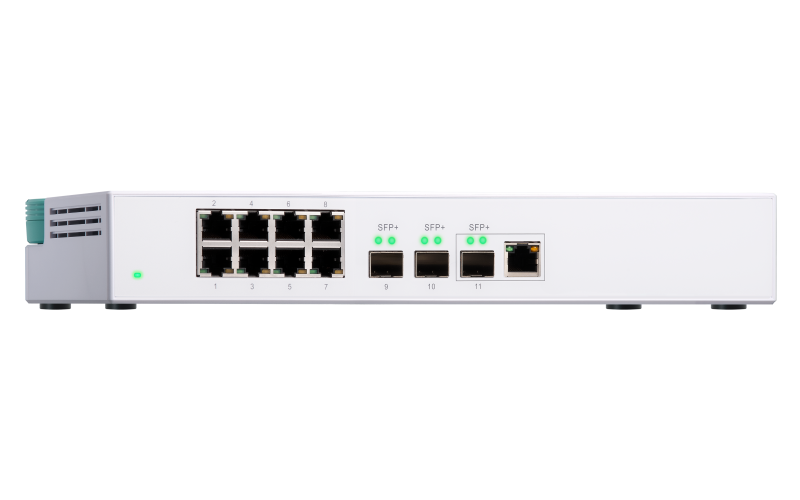

The QSW-308-1C is a 3-port 10G SFP+ and 8-port Gigabit Unmanaged Switch, providing three 10GbE SFP+ ports (with one 10GbE SFP+/RJ45 combo port) and eight Gigabit ports. The QSW-308-1C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price and is compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo port also provides higher transmission speeds when used with existing cables. With its desktop size and silent operation, the QSW-308-1C perfectly blends into homes and offices while providing high performance, low latency and superb functionality.
Package Contents
- QSW-308-1C Ethernet Switch
- Power Cord
- Power Adapter
- Quick Installation Guide (QIG)
The QSW-308-1C provides three 10GbE SFP+ ports and eight Gigabit ports. QSW-308-1C is compatible with 10GbE and NBASE-T technologies to support five speeds.
The unique fanless design with ventilated construction provides silent operations while maintaining high performance.
Simply connect the QSW-308-1C to your devices and it will do the rest. It supports auto-negotiation for optimal speed and duplex detection when connecting different devices.
Features:
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-308-1C provides three 10GbE SFP+ ports and eight Gigabit ports for connecting various devices and enabling a hybrid high-speed network in homes and offices. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-308-1C is 76Gbps, guaranteeing the full potential of each port.
Faster speeds using existing cables with 10GBASE-T & NBASE-T
The QSW-308-1C is compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo port offers higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

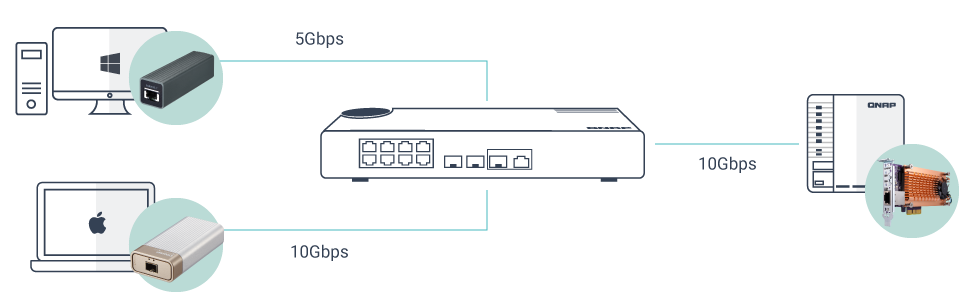

Easily build a High-Speed Network with QNAP Network Adapters
QNAP provides a wide range of network devices to assist business and home users with upgrading their network infrastructure to meet growing bandwidth requirements. QNAP's Thunderbolt 3 to 10GbE Network Adapter provides a quick and budget-friendly method for laptops (and other upgrade-constrained devices) to take advantage of high-speed 10GbE connectivity.
Improve your productivity with a 10GbE-enabled QNAP NAS
Many QNAP NAS series are designed with 10GbE readiness, and can be immediately upgraded by purchasing and installing a 10GbE network adapter. QNAP NAS are also available with 10GbE SFP+ and 10GBASE-T as standard to fully support 10GbE high-speed networks, making them beneficial for IOPS-demanding applications such as virtualization, databases, high-resolution video editing, and sharing workflows.
Cool and quiet operation

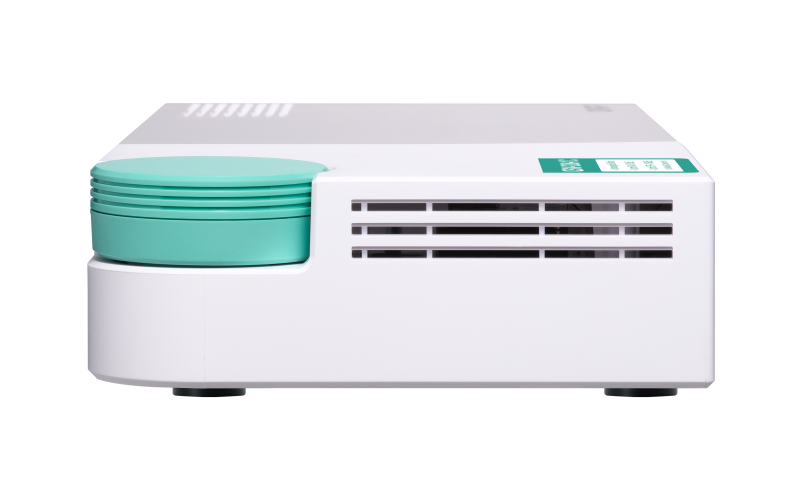

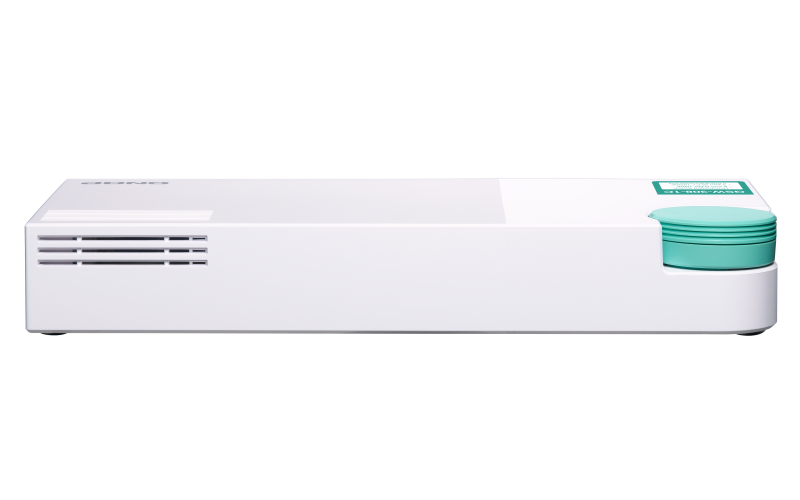

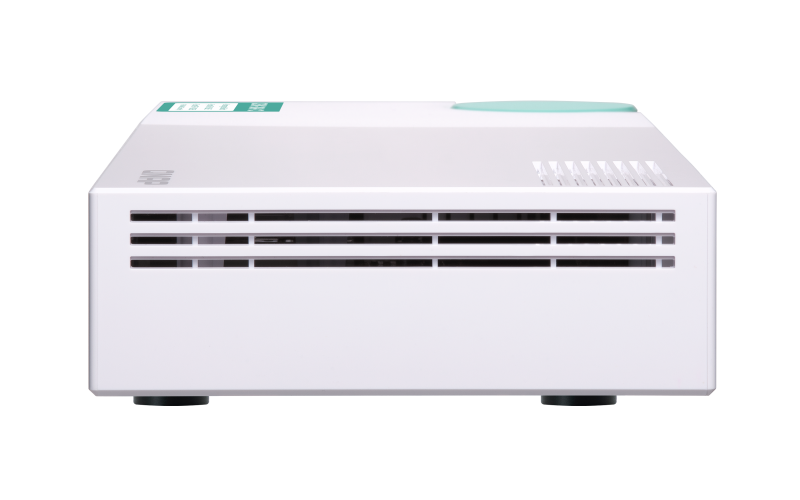

The QSW-308-1C features a fanless design for silent operations. The unique ventilated construction assists in cooling while maintaining high performance.
Desktop size for easy use in homes and offices

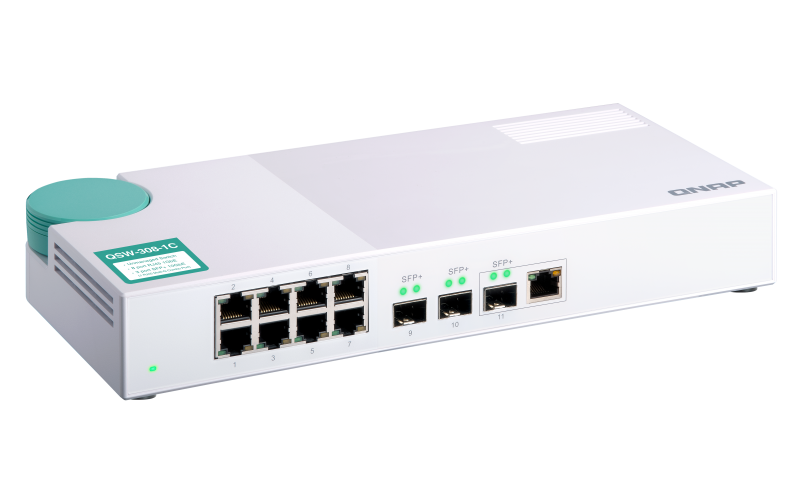

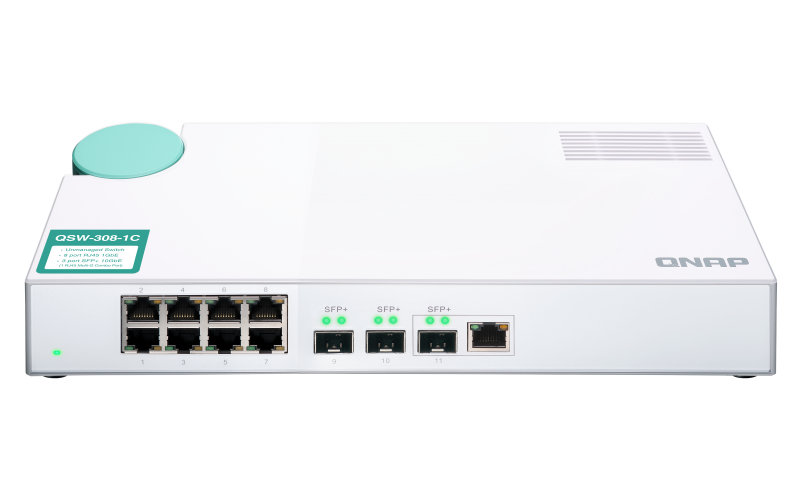

With a compact and modern design, the QSW-308-1C fits perfectly alongside other devices in modern digital homes and offices. Featuring a delicate white polished or textured surface design, the QSW-308-1C helps users to easily identify each port. The flexible DC power connector also assists in universally deploying the QSW-308-1C.
Specifications:
|
QSW-308-1C-US |
| Management Type |
Unmanaged |
| Supported Standards |
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3an 10GBASE-T
IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet |
| Jumbo Frames |
10k |
| Electromagnetic Compliance |
CLASS B, UL62368 |
| Certifications |
CE, FCC, VCCI, BSMI RCM |
| Relative Humidity |
5~95% Non-condensing |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Weight (Gross) |
2.62 lbs |
| Weight (Net) |
1.7 lbs |
| Dimensions (HxWxD) |
1.67 × 11.42 × 5 inch |
| LED Indicators |
Per Port: Speed/Link/Activity
Per System: Power/Status |
| Form Factor |
Desktop |
| Fanless |
Yes |
| Number of Ports |
11 |
| Switching Capacity |
76Gbps |
| Total Non-Blocking Throughput |
38Gbps |
| MAC Address Table |
16K |
| Input Voltage Range |
100-240VAC, 50/60 Hz |
| Input Power Type |
AC |
| Max. Power Consumption |
36W |
| Power Supply Description |
Adapter |
| 1GbE (RJ45) |
8 |
| 10GbE SFP+/RJ45 ComboPorts |
1 |
| 10GbE SFP+ |
2 |
