QNAP TVS-882BR
All-in-one Blu-ray NAS for disc backup and burning, video playback, and file sharing

Overview:

The TVS-882BR uses 7th Generation Intel® 14nm multi-core processors, providing advanced hardware with enhanced tiering storage, application-based partitioning and network traffic distribution. The TVS-882BR comes with a SATA optical disc drive (ODD) slot, allowing you to install a compatible Blu-ray Disc drive. QNAP also provides models with a preloaded ODD, allowing you to experience extensive disc applications right way. With simple installation, you can backup the content of your discs to NAS for long-term storage and easier sharing, or you can burn NAS files to disc. You can also play Blu-ray discs directly on HDTV via HDMI output through virtual machines or Linux Station. Three PCIe Gen.3 slots allows for 10GbE/40GbE NIC, SAS storage expansion card, and USB 3.1 10GbE adapter, making the TVS-882BR ideal for diversified storage applications.

• 5.25” SATA ODD for installing an optical disc drive or two slim disc drives; TVS-882BR also supports USB disc drives
• Two M.2 SATA 6Gb/s slots and Qtier auto-tiering for optimized storage efficiency
• Triple HDMI output enables direct disc playing through virtual machines
• Qfiling enables automatic file organization; Qsirch full-text search helps locate files faster
• Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization
• The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
• Virtual JBOD (VJBOD) allows using the free space of a QNAP NAS to expand the capacity of other QNAP NAS

Specifications:

TVS-882BR Hardware Specifications
Ordering P/N	TVS-882BR-i5-16G TVS-882BR-ODD-i5-16G	TVS-882BR-i7-32G TVS-882BR-ODD-i7-32G
CPU	Intel® Core™ i5-7500 Quad-core 3.4 GHz (Max. 3.8 GHz)	Intel® Core™ i7-7700 Quad-core 3.6 GHz (Max. 4.2 GHz)
Graphic Processors	9th Intel® HD Graphics
System memory	16GB DDR4 (8GB x 2)	32GB DDR4 (8GB x 4)
Total DIMM slots	4 (Max. 64GB)
Flash Memory	512MB DOM
ODD Expansion Slot	1 x 5.25” 5.25" disc burner or 2 x Slim SATA disc burners * ODD skus come with preloaded Blu-ray ODD
Preloaded ODD	LG WH16NS58D
M.2 Slot	2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD *M.2 SSD is not included
Hard Drive Tray	8 x 2.5”/3.5” SATA 6Gb/s, 3Gb/s HDD or SSD
USB Port	1 x USB 3.0 port (Front) 4 x USB 3.0 port (Rear)
LAN Port	4 x GbE RJ45
HDMI Output	3 (HDMI 1.4b)
PCIe Slot	3 (HDD area: 1* PCIe Gen3 x8; Processor area: 2* PCIe Gen3 x4)
Audio Input	Audio In: 2 x 6.3mm MIC In
Audio Output	2 x built-in speakers and 1 x 3.5mm Line Out
Dimensions	234.6 (H) x 369.9 (W) x 319.8 (D) mm 9.23 (H) x 14.56 (W) x 12.59 (D) inch
Weight	Net: 11.55kg/ 25.46 lb Gross (with packing and accessories): 13.65 kg/ 30.09 lb ODD Preloaded: 0.63kg/ 1.4 lb
Sound Level (dB)*	Sound pressure (LpAm) (bystander position): 21.6 dB (with 8 x Seagate ST2000VN000-1HJ164 Hard Drive installed)
Power Supply	ATX 100-240V~, 3-1.5A Output 250W
Fan	System Area: 3 x 8 cm cooling Fan Processor Area: 1 x 9 cm Fan

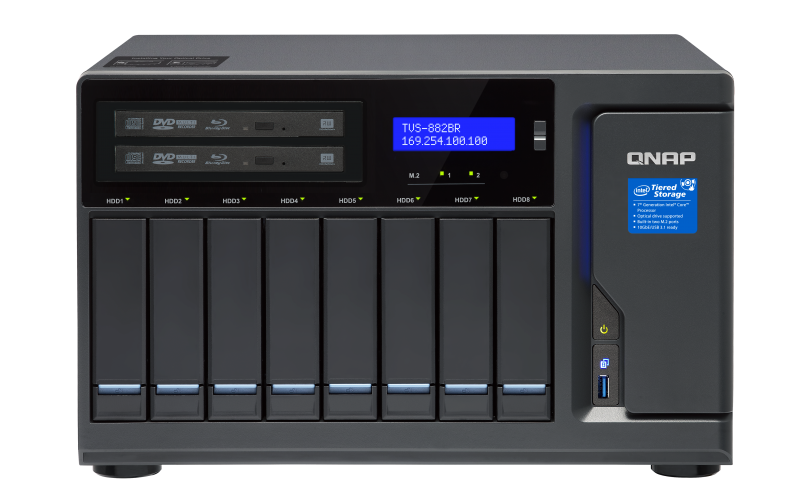

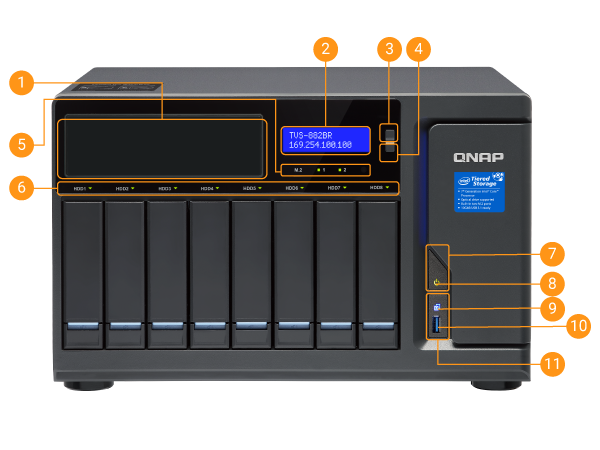

Front

1.	Optical drive bay	7.	Power button
2.	LCD panel	8.	Status LED
3.	Enter button	9.	USB One Touch Copy LED
4.	Select button	10.	USB 3.0 One Touch Copy port
5.	M.2 LEDs	11.	USB One Touch Copy button
6.	Drive LEDs

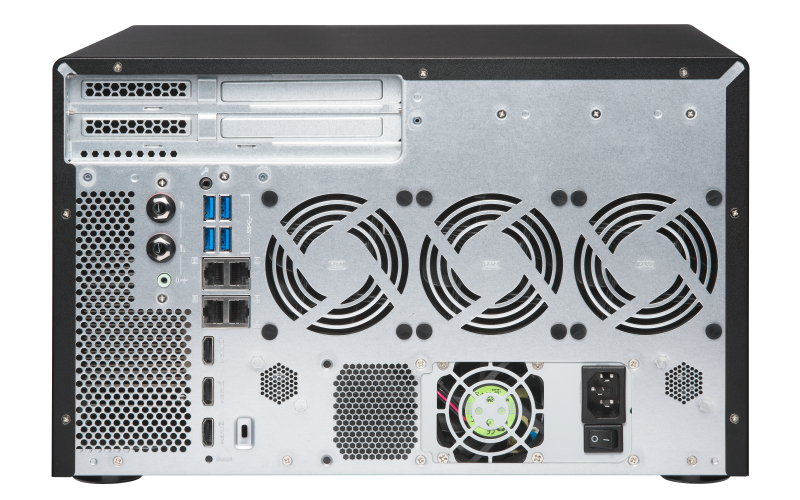

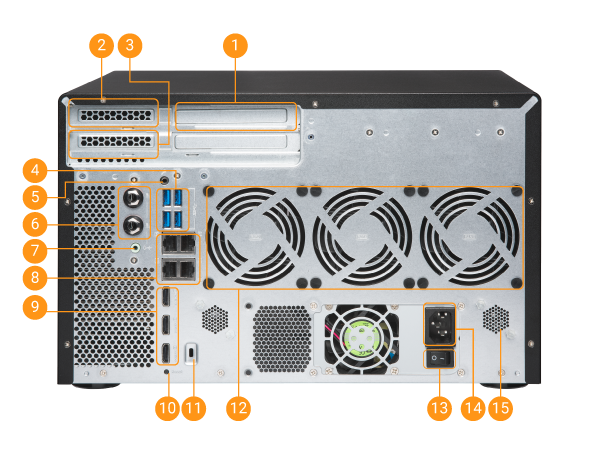

Rear

1.	PCIe 3.0 x8 (slot 1)	9.	HDMI ports
2.	PCIe 3.0 x4 (slot 2)	10.	Reset button
3.	PCIe 3.0 x4 (slot 3)	11.	Kensington security slot
4.	USB 3.0 ports	12.	System fans
5.	Console port	13.	Power switch
6.	6.3 mm microphone jacks	14.	Power port
7.	3.5 mm speaker jack	15.	Speakers
8.	Gigabit RJ45 Ethernet ports

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.

Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.

* Sound Level Test Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS.

Designs and specifications are subject to change without notice.

Documentation:

Download the QNAP TVS-882BR / TVS-882BRT3 Datasheet (PDF).
