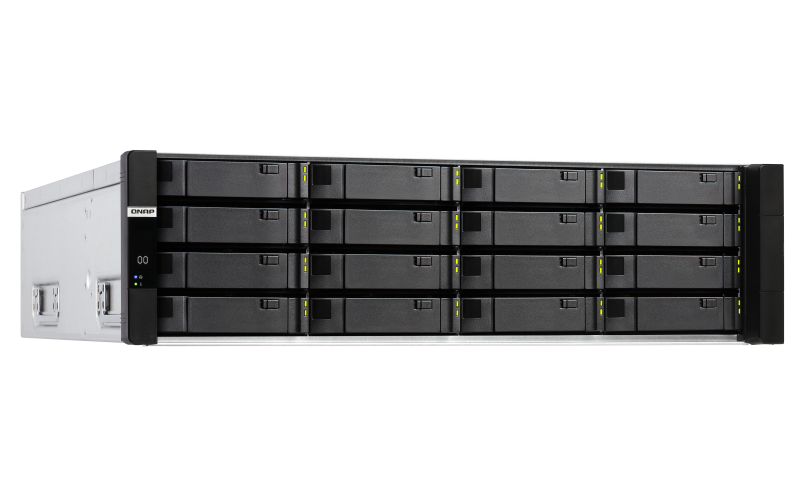

QNAP ES1686dc
Next-generation Enterprise ZFS NAS: High-performance and near-zero downtime high availability

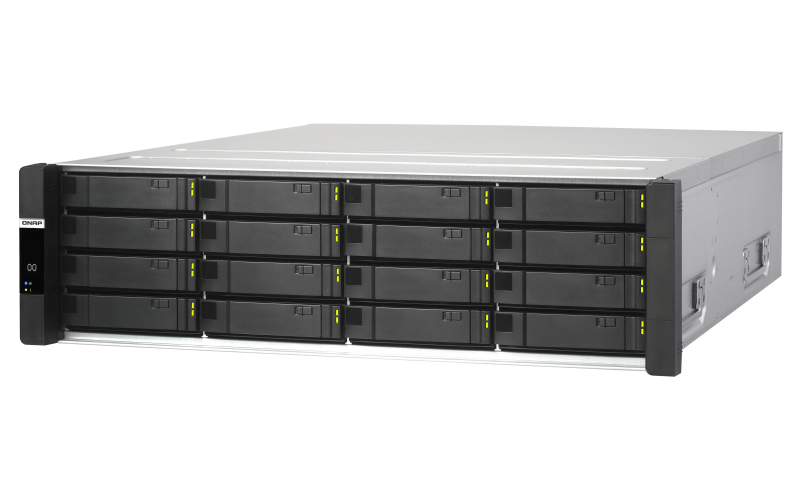

QNAP ES1686dc

Enterprise Storage
QNAP 16-Bay Active-Active Dual Controller ZFS NAS and iSCSI/ IP-SAN. 3U, SAS 12G (compatible with SAS 6G), 3 x Gigabit LAN, 4x10GbE(SFP+), 40GbE-ready (128GB RAM)
Intel® Xeon® D-2145NT 1.9GHz 8-core, 64GB (4 x 16GB, Max: 512 GB) for each controller, 64GB write cache per controller, 2 x M.2 Gen.3 x4 2280. Storage pool with RAID 0/1/5/6/10/50/60/RAID TP/triple Mirror, redundant PSU, with Rail Kit
#ES1686dc-2145NT-128G-US
Our Price: $13,999.00
QNAP 16-Bay Active-Active Dual Controller ZFS NAS and iSCSI/ IP-SAN. 3U, SAS 12G (compatible with SAS 6G), 3 x Gigabit LAN, 4x10GbE(SFP+), 40GbE-ready (96GB RAM)
Intel® Xeon® D-2145NT 1.9GHz 8-core, 48GB (4 x 4GB + 4 x 8GB, Max: 512 GB) for each controller, 64GB write cache per controller, 2 x M.2 Gen.3 x4 2280. Storage pool with RAID 0/1/5/6/10/50/60/RAID TP/triple Mirror, redundant PSU, with Rail Kit
#ES1686dc-2145NT-96G-US
Our Price: $12,999.00
QNAP 16-Bay Active-Active Dual Controller ZFS NAS and iSCSI/ IP-SAN. 3U, SAS 12G (compatible with SAS 6G), 3 x Gigabit LAN, 4x10GbE(SFP+), 40GbE-ready (64GB RAM)
Intel® Xeon® D-2145NT 1.9GHz 8-core, 32GB (4 x 8GB, Max: 512 GB) for each controller, 64GB write cache per controller, 2 x M.2 Gen.3 x4 2280. Storage pool with RAID 0/1/5/6/10/50/60/RAID TP/triple Mirror, redundant PSU, with Rail Kit
#ES1686dc-2123IT-64G-US
Our Price: $10,999.00
QNAP 16-Bay Active-Active Dual Controller ZFS NAS and iSCSI/ IP-SAN. 3U, SAS 12G (compatible with SAS 6G), 3 x Gigabit LAN, 4x10GbE(SFP+), 40GbE-ready (128GB RAM)
Intel® Xeon® D-2142IT 1.9GHz 8-core, 64GB (4 x 16GB, Max: 512 GB) for each controller, 64GB write cache per controller, 2 x M.2 Gen.3 x4 2280. Storage pool with RAID 0/1/5/6/10/50/60/RAID TP/triple Mirror, redundant PSU, with Rail Kit
#ES1686dc-2142IT-128G
Our Price: $13,999.00
QNAP 16-Bay Active-Active Dual Controller ZFS NAS and iSCSI/ IP-SAN. 3U, SAS 12G (compatible with SAS 6G), 3 x Gigabit LAN, 4x10GbE(SFP+), 40GbE-ready (96GB RAM)
Intel® Xeon® D-2142IT 1.9GHz 8-core, 48GB (4 x 4GB + 4 x 8GB, Max: 512 GB) for each controller, 64GB write cache per controller, 2 x M.2 Gen.3 x4 2280. Storage pool with RAID 0/1/5/6/10/50/60/RAID TP/triple Mirror, redundant PSU, with Rail Kit
#ES1686dc-2142IT-96G
Our Price: $12,999.00
ES1686dc-2145NT-128G-US Seagate Bundles
QNAP ES1686dc-2145NT-128G-US 64TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-128G-US-16-ST400
List Price:$16,995.00
Our Price: $16,299.00
QNAP ES1686dc-2145NT-128G-US 96TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-128G-US-16-ST600
List Price:$17,299.00
Our Price: $17,028.00
QNAP ES1686dc-2145NT-128G-US 128TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-128G-US-16-ST800
List Price:$17,999.00
Our Price: $17,787.00
QNAP ES1686dc-2145NT-128G-US 192TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-128G-US-16-ST1200
List Price:$20,200.00
Our Price: $19,547.00
QNAP ES1686dc-2145NT-128G-US 224TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-128G-US-16-ST1400
List Price:$21,999.00
Our Price: $20,753.00
ES1686dc-2145NT-96G-US Seagate Bundles
QNAP ES1686dc-2145NT-96G-US 64TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-96G-US-16-ST400
List Price:$15,995.00
Our Price: $15,334.00
QNAP ES1686dc-2145NT-96G-US 96TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-96G-US-16-ST600
List Price:$16,399.00
Our Price: $16,064.00
QNAP ES1686dc-2145NT-96G-US 128TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-96G-US-16-ST800
List Price:$17,599.00
Our Price: $17,434.00
QNAP ES1686dc-2145NT-96G-US 192TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-96G-US-16-ST1200
List Price:$19,200.00
Our Price: $18,582.00
QNAP ES1686dc-2145NT-96G-US 224TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-96G-US-16-ST1400
List Price:$20,200.00
Our Price: $19,788.00
ES1686dc-2123IT-64G-US Seagate Bundles
QNAP ES1686dc-2123IT-64G-US 64TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 16)
#ES1686dc-2123IT-64G-US-16-ST400
List Price:$13,999.00
Our Price: $13,405.00
QNAP ES1686dc-2123IT-64G-US 96TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 16)
#ES1686dc-2123IT-64G-US-16-ST600
List Price:$14,999.00
Our Price: $14,134.00
QNAP ES1686dc-2123IT-64G-US 128TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 16)
#ES1686dc-2123IT-64G-US-16-ST800
List Price:$15,999.00
Our Price: $15,505.00
QNAP ES1686dc-2123IT-64G-US 192TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 16)
#ES1686dc-2123IT-64G-US-16-ST1200
List Price:$16,999.00
Our Price: $16,653.00
QNAP ES1686dc-2123IT-64G-US 224TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 16)
#ES1686dc-2123IT-64G-US-16-ST1400
List Price:$18,500.00
Our Price: $17,859.00
ES1686dc-2145NT-128G-US Seagate Bundles with Nytro SSD
QNAP ES1686dc-2145NT-128G-US 54.4TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-128G-US-16-ST400N
List Price:$18,999.00
Our Price: $16,026.00
QNAP ES1686dc-2145NT-128G-US 78.4TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-128G-US-16-ST600N
List Price:$15,699.00
Our Price: $15,434.00
QNAP ES1686dc-2145NT-128G-US 102.4TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-128G-US-16-ST800N
List Price:$20,995.00
Our Price: $20,048.00
QNAP ES1686dc-2145NT-128G-US 150.4TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-128G-US-16-ST1200N
List Price:$21,995.00
Our Price: $21,595.00
QNAP ES1686dc-2145NT-128G-US 174.4TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-128G-US-16-ST1400N
List Price:$22,999.00
Our Price: $22,660.00
ES1686dc-2145NT-96G-US Seagate Bundles with Nytro SSD
QNAP ES1686dc-2145NT-96G-US 54.4TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-96G-US-16-ST400N
Our Price: $17,889.00
QNAP ES1686dc-2145NT-96G-US 78.4TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-96G-US-16-ST600N
List Price:$17,995.00
Our Price: $14,469.00
QNAP ES1686dc-2145NT-96G-US 102.4TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-96G-US-16-ST800N
Our Price: $19,084.00
QNAP ES1686dc-2145NT-96G-US 150.4TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-96G-US-16-ST1200N
List Price:$22,995.00
Our Price: $20,631.00
QNAP ES1686dc-2145NT-96G-US 174.4TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-96G-US-16-ST1400N
List Price:$21,999.00
Our Price: $21,695.00
ES1686dc-2145NT-64G-US Seagate Bundles with Nytro SSD
QNAP ES1686dc-2145NT-64G-US 54.4TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-64G-US-16-ST400N
List Price:$17,195.00
Our Price: $15,960.00
QNAP ES1686dc-2145NT-64G-US 78.4TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-64G-US-16-ST600N
List Price:$17,995.00
Our Price: $12,540.00
QNAP ES1686dc-2145NT-64G-US 102.4TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-64G-US-16-ST800N
Our Price: $17,9154.00
QNAP ES1686dc-2145NT-64G-US 150.4TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-64G-US-16-ST1200N
List Price:$18,955.00
Our Price: $18,701.00
QNAP ES1686dc-2145NT-64G-US 174.4TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-64G-US-16-ST1400N
List Price:$19,995.00
Our Price: $19,766.00

Click here to jump to more pricing!

Overview:

Delivering enterprise high availability, the ES1686dc Enterprise ZFS NAS features Intel® Xeon® D processors, dual active controllers, up to 512 GB DDR4 ECC memory, SAS 12Gb/s, and ZFS that supports logical volume management. The ES1686dc runs the latest QES 2.1.0 operating system that supports near-limitless snapshots, SnapSync, block-level data deduplication, and inline data compression. Whether being used as a mission-critical file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the ES1686dc helps your business to achieve service-level agreements for performance and uptime.

Active-Active high availability with optimal storage efficiency

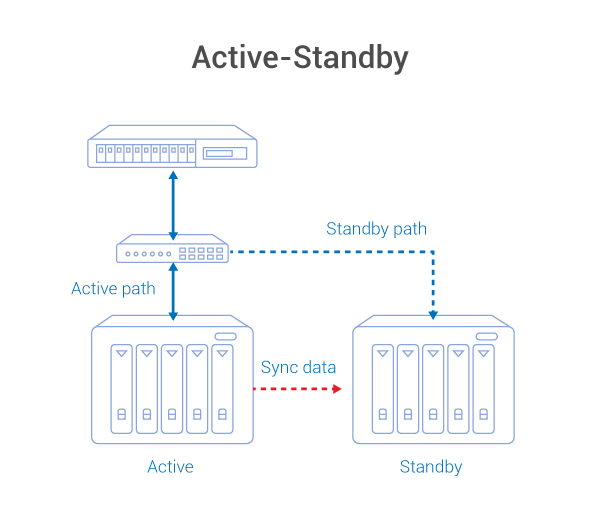

overview-2 Active-Standby single-controller system

With two HA systems you are paying twice the price and causing a load imbalance as workloads are only processed on the active system. A power outage could cause data loss, and the disconnected network invalidates the HA architecture.

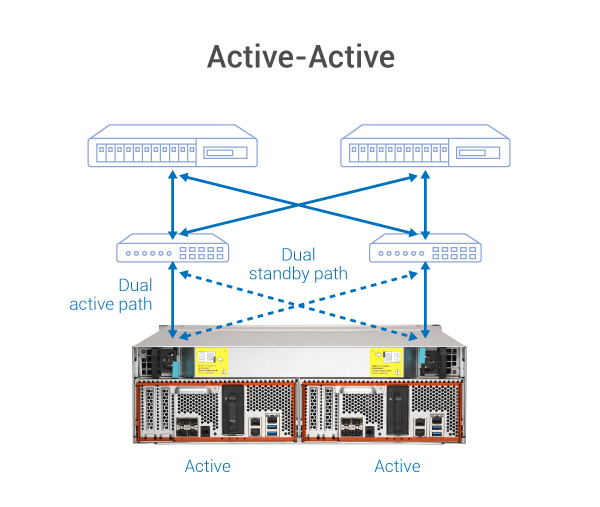

overview-2Active-Active dual-controller system

Both controllers of the ES1686dc can carry traffic, along with Copy-To-Flash protection against power failure and the dual-path SAS interface. Besides conserving computing resources, a high-speed, uninterrupted, and high-availability storage service is also provided through communication protocols such as SMB, NFS and iSCSI.

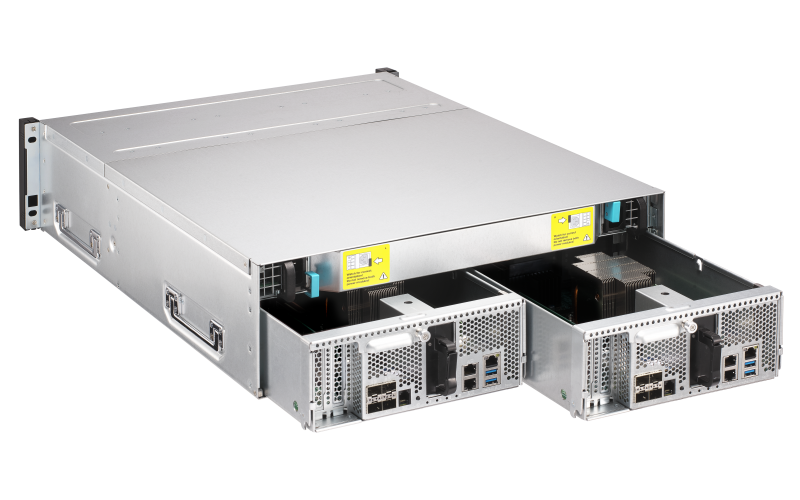

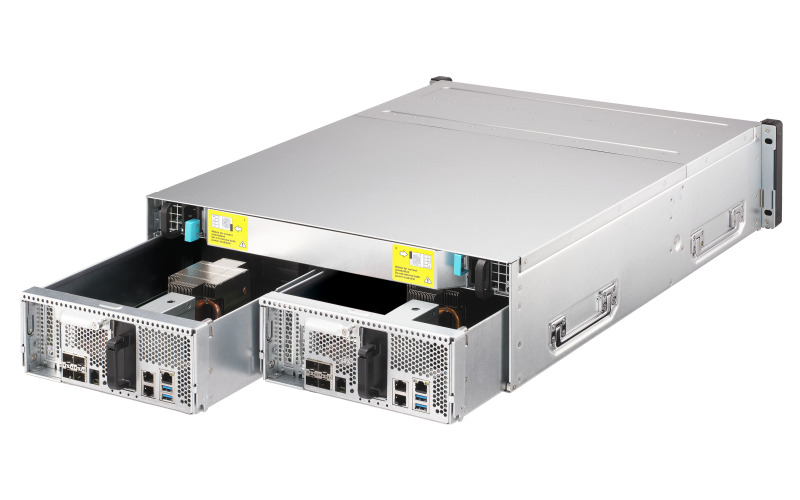

Intel® Xeon® D dual-controller ensures high availability and failure-resistant service

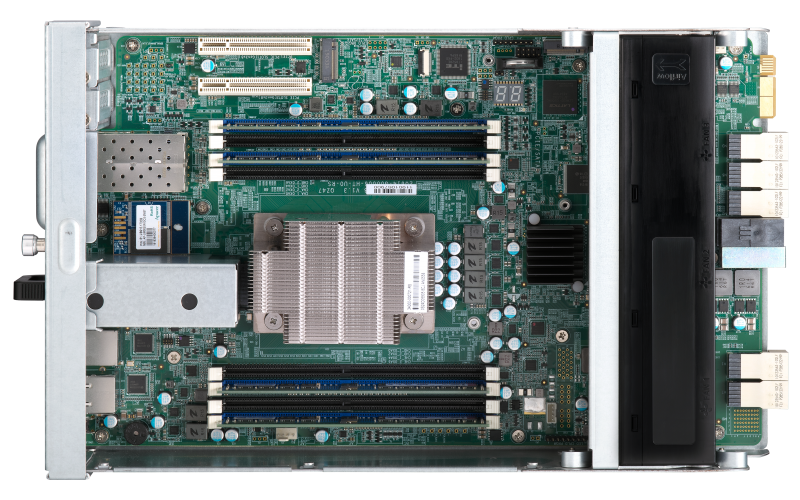

Powered by two Intel® Xeon® D processors, the ES1686dc features a dual active-active controller architecture that provides failover/failback operations as the standby controller can quickly take over if one controller breaks down. Redundant hot-swappable power supplies and cooling fans are also included to provide businesses with near-zero downtime high availability. The ES1686dc connects to the JBOD enclosure (EJ1600 v2) via the dual-path mini-SAS design to sustain continuous operations even if a JBOD cable is disconnected. Designed around redundancy, the ES1686dc is the best realization of reliable enterprise storage for uninterrupted mission-critical enterprise tasks and productivity.

overview-3

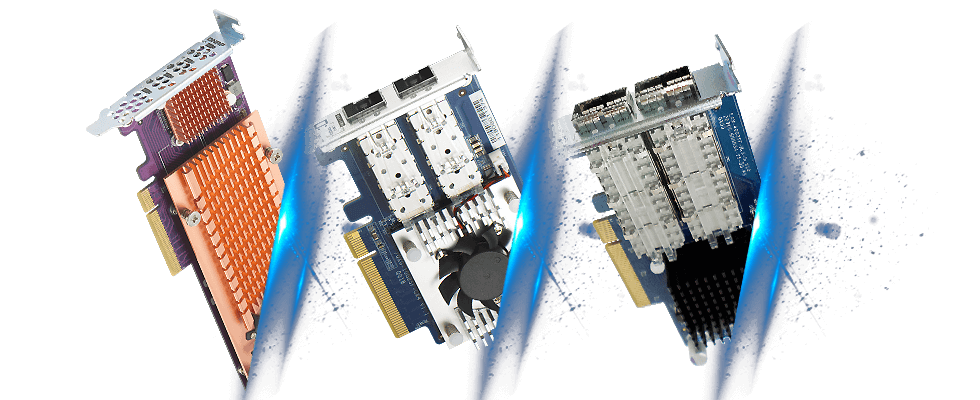

PCIe expansion for 40GbE high-speed networks

The ES1686dc provides two PCIe Gen3 x8 slots connected to the CPU, allowing you to install lightning-fast 10GbE/40GbE network cards to boost virtualization, media streaming, and other bandwidth-demanding applications. Installing Mellanox® Smart NICs further adds support for iSER for improved VMware® virtualization performance. You can also install a QM2 expansion card (QM2-4P-384) to add four additional M.2 2280 PCIe NVMe SSD slots to burst reading performance with SSD caching, or a SAS expansion card (SAS-12G2E) for connecting up to seven 16-bay EJ1600 v2 expansion enclosures to seamlessly expand the potential storage capacity over 1PB, with unprecedented performance of up to 48Gbps per host connection.

overview-2


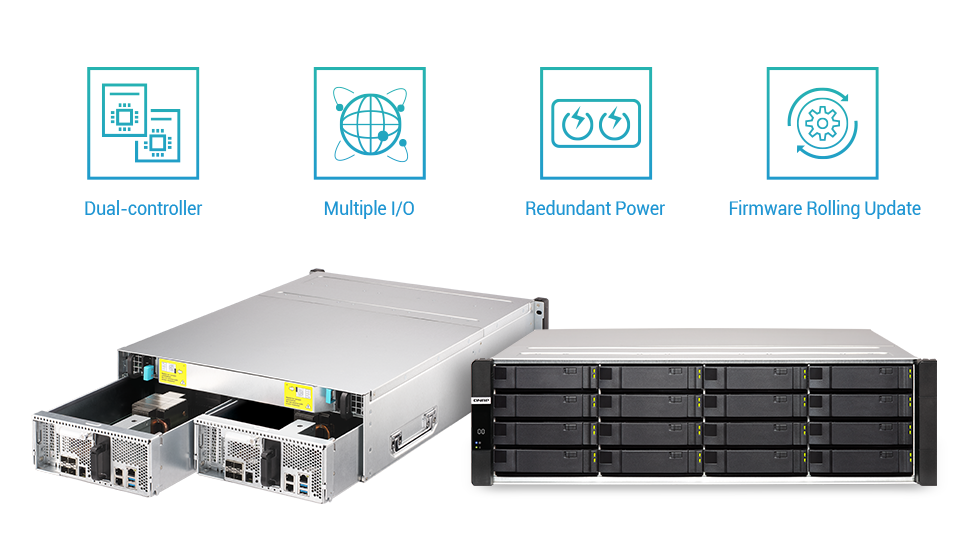

Dual controller NAS: High reliability and high availability

“Reliability” is the priority for mission-critical business applications. The ES1686dc adopts dual active-active controllers to provide the most reliable base for business IT storage.

overview-3

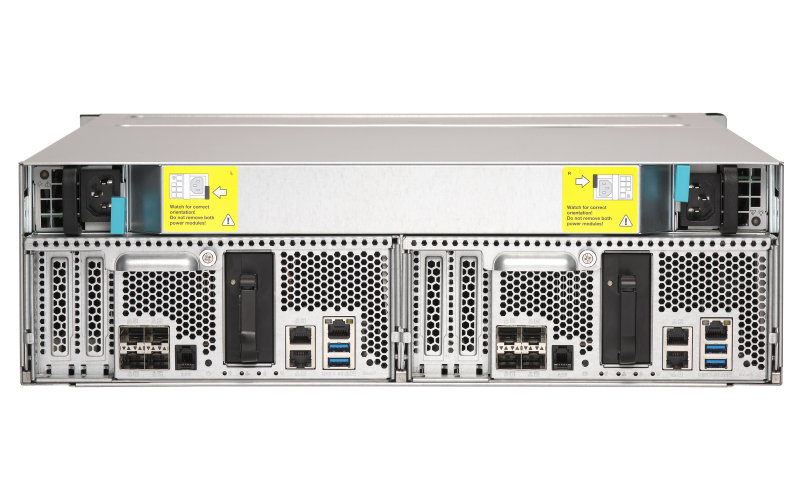

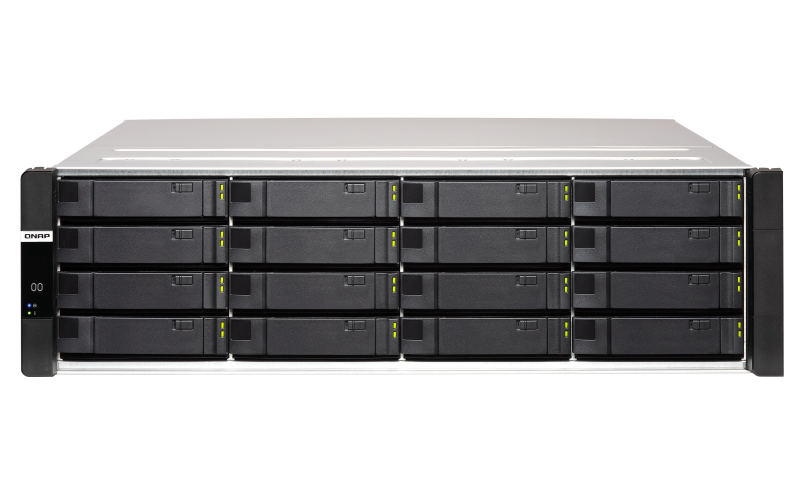

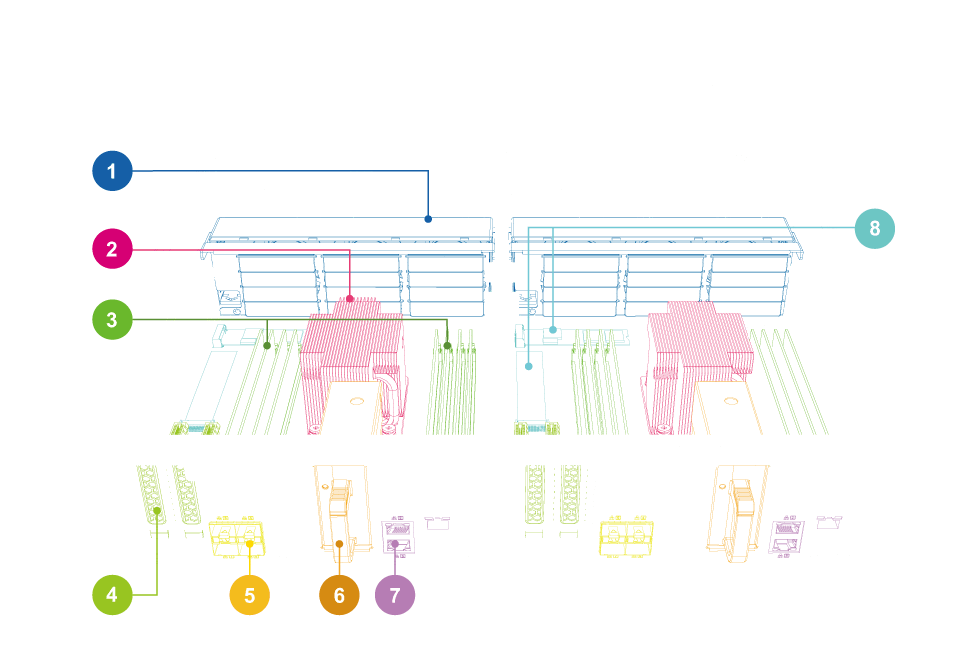

  1. 16x 3.5-inch/2.5-inch SAS 12Gb/s HDD/SSD ports
  2. Intel® Xeon® D-2100 series processor
  3. DDR4 2133 MHz ECC memory
  4. 2x PCIe Gen3 x8 slots
  5. 4x 10GbE SFP+ ports
  6. Battery Backup Unit (BBU)
  7. 3x Gigabit ports
  8. 2x M.2 SSD ports

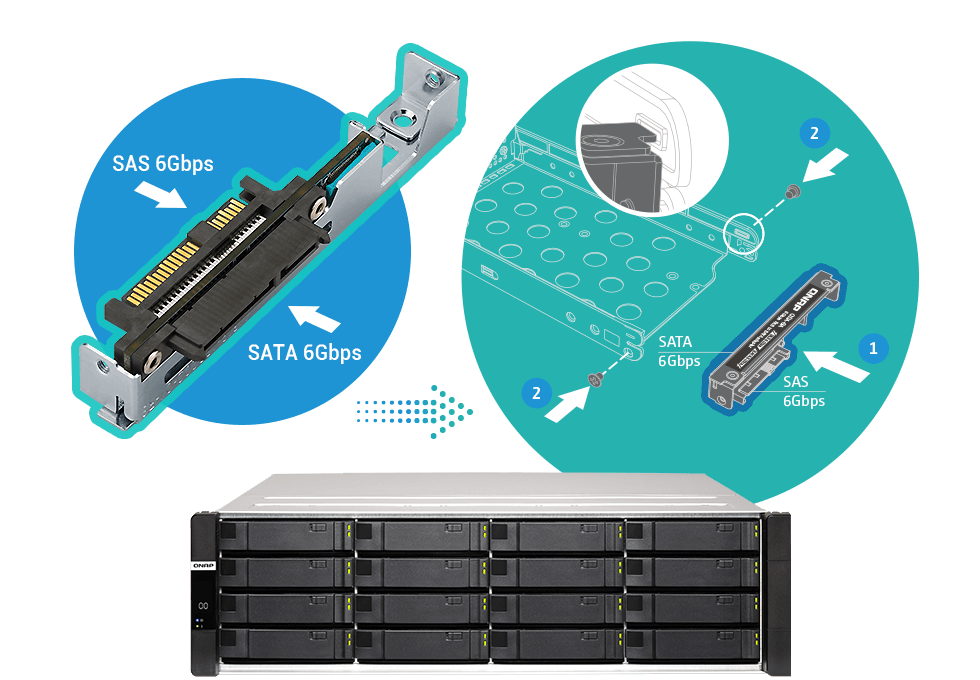

Leverage the 6Gbps SAS to SATA drive adapter

While SATA 6Gb/s SSDs provide high-performance yet affordable storage, the lack of dual-port support makes them unsuitable for dual-controller environments. The QDA-SA adapter is designed for QNAP Enterprise ZFS NAS, and allows the use of a SATA 6Gb/s drive in a 3.5-inch SAS drive bay - providing the ability to expand storage capacity by using cost-effective SATA drives. By installing a SATA drive with the QDA-SA into the dual-controller ES1686dc, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault-tolerant enterprise storage environment.

overview-2

QES 2.1.0
QNAP Enterprise System
QTS
QNAP NAS System
OS Kernel FreeBSD Linux
File system ZFS Ext4
CIFS/FTP/NFS/iSCSI
End-to-end data integrity
Snapshot upper limit 65535 1024
Remote disaster backup and recovery SnapSync Snapshot Replica
Deduplication Deduplicate backup data at the source
(Hybrid Backup Sync 3.0)
Real-time data compression
Real-time data compaction
Application consistency Snapshot Agent
VSS Hardware Provider
(QNAP NetBak Replicator)
Snapshot Agent
VSS Hardware Provider
(QNAP NetBak Replicator)
Qtier (Auto Tiering)
App Center
Application services
(Virtualization Station, Web Server, multimedia service, etc.)
Application scenarios • Reliable storage for mission-critical business tasks.
• The perfect backup storage for the dual-controller Enterprise ZFS NAS.
• High-performance storage with SSD and Qtier technology for maximized cost-efficiency.
• Storage for hosting virtual machines and containerized applications.
• Application server using QTS services (Web server, VPN server, FTP server, etc).


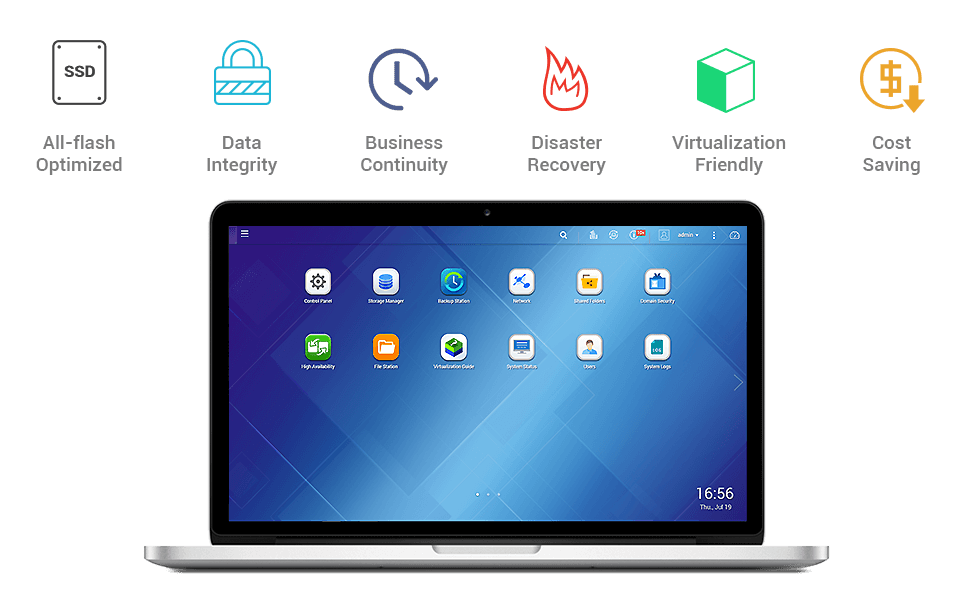

QES 2.1.0: ZFS-based, and optimized for all flash performance

The ES1686dc features the QES (QNAP Enterprise Storage) 2.1.0 operating system, which is based on the simple and efficient FreeBSD kernel and the ZFS file system that has been proven through years of experience to be most suitable for high-end enterprise applications. Not only does QES 2.1.0 provide reliable data protection, recovery, and business-class features, it is optimized for flash storage and is capable of driving outstanding performance for all-flash storage arrays to accelerate mission-critical services and eliminate challenges in VDI environments. QES 2.1.0 also comes with Quality of Service (QoS) capabilities that help ensure consistent primary storage performance in multi-application environments. Continuing the same user experience with the intuitive QTS operating system, QES provides business users with an easy learning curve for quick implementation within IT infrastructures.

overview-3

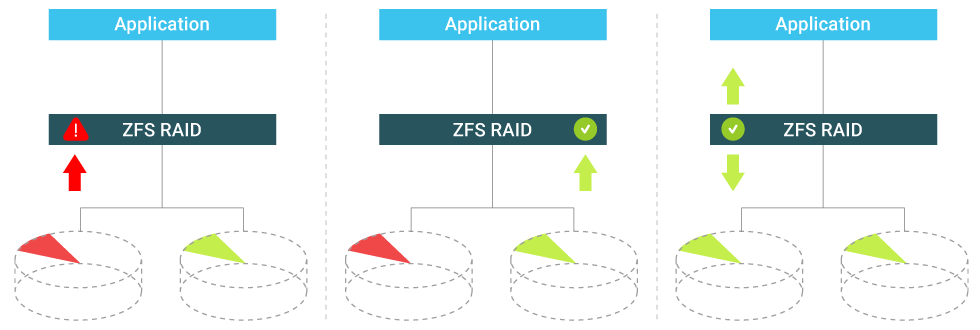

Self-Healing ensures data integrity and reliability

Designed with a focus on data integrity, a fundamental aspect of storage security and reliability, the QES-based ES1686dc uses its end-to-end checksums to detect and correct silent data corruption caused by hardware defects, bugs in firmware or metadata errors. If integrity violations are detected, QES automatically repairs the damage using data from the other mirror before the data is passed to applications.

overview-3

Features:

Intel® Xeon® D dual active-active controllers provide supreme uptime and redundancy to ensure high availability.

Battery-protected DRAM write to cache data protection and Flash read acceleration provides industry-leading random access performance.

Two M.2 SSD slots allow for implementing SSD cache acceleration.

Four 10GbE SFP+ ports accelerate virtualization, large file sharing, and intensive data transfer.

Near-limitless snapshots and SnapSync for snapshot remote backup assist businesses to resume essential services in the shortest time.

Supports VMware® vSphere® 6.5, Windows Server® 2016 and Citrix® XenServer® 7.0 for storage virtualization. Compatible with OpenStack® cloud environments.

Specifications:

CPU Intel® Xeon® D-2145NT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller
Maximum Memory 512 GB (8 x 64GB)
Memory Slot 8 x DDR4 RDIMM/LRDIMM
IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 16 x 3.5-inch
SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA solid state drives

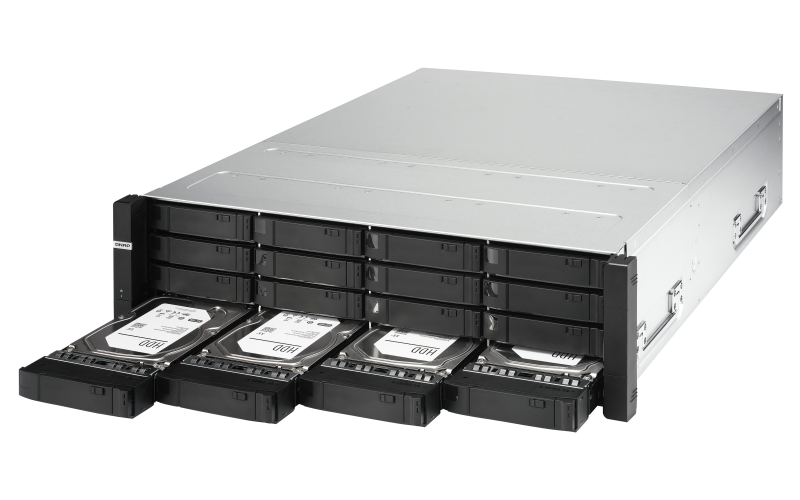

Hot-swappable
M.2 SSD Slot 2 x M.2 port
Supports SATA 6Gb/s or NVMe Gen3 x4 2280
SSD Cache Acceleration Support
Cache for Copy To Flash (C2F) 1 per each controller (64GB)
Gigabit Ethernet Port (RJ45) 3 for each controller (one for remote management)
10 Gigabit Ethernet Port 4 x 10G SFP+ for each controller
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen3 x8 (CPU)
Slot 2: PCIe Gen3 x8 (CPU)
USB 3.0 port 2 per each controller
Form Factor 3U Rack Mount
LED Indicators System Power LED (Green): on/off
System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection
Buttons Power, Reset
Dimensions (HxWxD) 132 × 483.05 × 630.62 mm
Weight (Net) 25.83 kg
Weight (Gross) 32.69 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Redundant/ Hot Swap Power Vin:90~264VAC;770W
Power Consumption: Operating Mode, Typical 500.87 W
Fan Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
Sound Level 55.8 db(A)
Safety Standard FCC Class A (USA only)
CE Mark ( EN55022 Class A, EN55024)
EN60950
BSMI
VCCI
CB
LVD
CPU Intel® Xeon® D-2145NT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 48 GB RDIMM DDR4 ECC (4 x 4 GB+4 x 8GB) per controller
Maximum Memory 512 GB (8 x 64GB)
Memory Slot 8 x DDR4 RDIMM/LRDIMM
IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 16 x 3.5-inch
SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA solid state drives
Hot-swappable
M.2 SSD Slot 2 x M.2 port
Supports SATA 6Gb/s or NVMe Gen3 x4 2280
SSD Cache Acceleration Support
Cache for Copy To Flash (C2F) 1 per each controller (64GB)
Gigabit Ethernet Port (RJ45) 3 for each controller (one for remote management)
10 Gigabit Ethernet Port 4 x 10G SFP+ for each controller
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen3 x8 (CPU)
Slot 2: PCIe Gen3 x8 (CPU)
USB 3.0 port 2 per each controller
Form Factor 3U Rack Mount
LED Indicators System Power LED (Green): on/off
System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection
Buttons Power, Reset
Dimensions (HxWxD) 132 × 483.05 × 630.62 mm
Weight (Net) 25.83 kg
Weight (Gross) 32.69 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Redundant/ Hot Swap Power Vin:90~264VAC;770W
Power Consumption: Operating Mode, Typical 500.87 W
Fan Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
Sound Level 55.8 db(A)
Safety Standard FCC Class A (USA only)
CE Mark ( EN55022 Class A, EN55024)
EN60950
BSMI
VCCI
CB
LVD
CPU Intel® Xeon® D-2123IT 4-core 2.20 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 32 GB RDIMM DDR4 ECC (4x 8 GB) per controller
Maximum Memory 512 GB (8 x 64GB)
Memory Slot 8 x DDR4 RDIMM/LRDIMM
IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 16 x 3.5-inch
SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA solid state drives
Hot-swappable
M.2 SSD Slot 2 x M.2 port
Supports SATA 6Gb/s or NVMe Gen3 x4 2280
SSD Cache Acceleration Support
Cache for Copy To Flash (C2F) 1 per each controller (64GB)
Gigabit Ethernet Port (RJ45) 3 for each controller (one for remote management)
10 Gigabit Ethernet Port 4 x 10G SFP+ for each controller
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen3 x8 (CPU)
Slot 2: PCIe Gen3 x8 (CPU)
USB 3.0 port 2 per each controller
Form Factor 3U Rack Mount
LED Indicators System Power LED (Green): on/off
System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection
Buttons Power, Reset
Dimensions (HxWxD) 132 × 483.05 × 630.62 mm
Weight (Net) 25.83 kg
Weight (Gross) 32.69 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Redundant/ Hot Swap Power Vin:90~264VAC;770W
Power Consumption: Operating Mode, Typical 500.87 W
Fan Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
Sound Level 55.8 db(A)
Safety Standard FCC Class A (USA only)
CE Mark ( EN55022 Class A, EN55024)
EN60950
BSMI
VCCI
CB
LVD

Documentation:

Datasheet for QNAP ES1686dc is coming soon.

Pricing Notes:

Enterprise Storage
QNAP 16-Bay Active-Active Dual Controller ZFS NAS and iSCSI/ IP-SAN. 3U, SAS 12G (compatible with SAS 6G), 3 x Gigabit LAN, 4x10GbE(SFP+), 40GbE-ready (128GB RAM)
Intel® Xeon® D-2145NT 1.9GHz 8-core, 64GB (4 x 16GB, Max: 512 GB) for each controller, 64GB write cache per controller, 2 x M.2 Gen.3 x4 2280. Storage pool with RAID 0/1/5/6/10/50/60/RAID TP/triple Mirror, redundant PSU, with Rail Kit
#ES1686dc-2145NT-128G-US
Our Price: $13,999.00
QNAP 16-Bay Active-Active Dual Controller ZFS NAS and iSCSI/ IP-SAN. 3U, SAS 12G (compatible with SAS 6G), 3 x Gigabit LAN, 4x10GbE(SFP+), 40GbE-ready (96GB RAM)
Intel® Xeon® D-2145NT 1.9GHz 8-core, 48GB (4 x 4GB + 4 x 8GB, Max: 512 GB) for each controller, 64GB write cache per controller, 2 x M.2 Gen.3 x4 2280. Storage pool with RAID 0/1/5/6/10/50/60/RAID TP/triple Mirror, redundant PSU, with Rail Kit
#ES1686dc-2145NT-96G-US
Our Price: $12,999.00
QNAP 16-Bay Active-Active Dual Controller ZFS NAS and iSCSI/ IP-SAN. 3U, SAS 12G (compatible with SAS 6G), 3 x Gigabit LAN, 4x10GbE(SFP+), 40GbE-ready (64GB RAM)
Intel® Xeon® D-2145NT 1.9GHz 8-core, 32GB (4 x 8GB, Max: 512 GB) for each controller, 64GB write cache per controller, 2 x M.2 Gen.3 x4 2280. Storage pool with RAID 0/1/5/6/10/50/60/RAID TP/triple Mirror, redundant PSU, with Rail Kit
#ES1686dc-2123IT-64G-US
Our Price: $10,999.00
QNAP 16-Bay Active-Active Dual Controller ZFS NAS and iSCSI/ IP-SAN. 3U, SAS 12G (compatible with SAS 6G), 3 x Gigabit LAN, 4x10GbE(SFP+), 40GbE-ready (128GB RAM)
Intel® Xeon® D-2142IT 1.9GHz 8-core, 64GB (4 x 16GB, Max: 512 GB) for each controller, 64GB write cache per controller, 2 x M.2 Gen.3 x4 2280. Storage pool with RAID 0/1/5/6/10/50/60/RAID TP/triple Mirror, redundant PSU, with Rail Kit
#ES1686dc-2142IT-128G
Our Price: $13,999.00
QNAP 16-Bay Active-Active Dual Controller ZFS NAS and iSCSI/ IP-SAN. 3U, SAS 12G (compatible with SAS 6G), 3 x Gigabit LAN, 4x10GbE(SFP+), 40GbE-ready (96GB RAM)
Intel® Xeon® D-2142IT 1.9GHz 8-core, 48GB (4 x 4GB + 4 x 8GB, Max: 512 GB) for each controller, 64GB write cache per controller, 2 x M.2 Gen.3 x4 2280. Storage pool with RAID 0/1/5/6/10/50/60/RAID TP/triple Mirror, redundant PSU, with Rail Kit
#ES1686dc-2142IT-96G
Our Price: $12,999.00
ES1686dc-2145NT-128G-US Seagate Bundles
QNAP ES1686dc-2145NT-128G-US 64TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-128G-US-16-ST400
List Price:$16,995.00
Our Price: $16,299.00
QNAP ES1686dc-2145NT-128G-US 96TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-128G-US-16-ST600
List Price:$17,299.00
Our Price: $17,028.00
QNAP ES1686dc-2145NT-128G-US 128TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-128G-US-16-ST800
List Price:$17,999.00
Our Price: $17,787.00
QNAP ES1686dc-2145NT-128G-US 192TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-128G-US-16-ST1200
List Price:$20,200.00
Our Price: $19,547.00
QNAP ES1686dc-2145NT-128G-US 224TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-128G-US-16-ST1400
List Price:$21,999.00
Our Price: $20,753.00
ES1686dc-2145NT-96G-US Seagate Bundles
QNAP ES1686dc-2145NT-96G-US 64TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-96G-US-16-ST400
List Price:$15,995.00
Our Price: $15,334.00
QNAP ES1686dc-2145NT-96G-US 96TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-96G-US-16-ST600
List Price:$16,399.00
Our Price: $16,064.00
QNAP ES1686dc-2145NT-96G-US 128TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-96G-US-16-ST800
List Price:$17,599.00
Our Price: $17,434.00
QNAP ES1686dc-2145NT-96G-US 192TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-96G-US-16-ST1200
List Price:$19,200.00
Our Price: $18,582.00
QNAP ES1686dc-2145NT-96G-US 224TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 16)
#ES1686dc-2145NT-96G-US-16-ST1400
List Price:$20,200.00
Our Price: $19,788.00
ES1686dc-2123IT-64G-US Seagate Bundles
QNAP ES1686dc-2123IT-64G-US 64TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 16)
#ES1686dc-2123IT-64G-US-16-ST400
List Price:$13,999.00
Our Price: $13,405.00
QNAP ES1686dc-2123IT-64G-US 96TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 16)
#ES1686dc-2123IT-64G-US-16-ST600
List Price:$14,999.00
Our Price: $14,134.00
QNAP ES1686dc-2123IT-64G-US 128TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 16)
#ES1686dc-2123IT-64G-US-16-ST800
List Price:$15,999.00
Our Price: $15,505.00
QNAP ES1686dc-2123IT-64G-US 192TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 16)
#ES1686dc-2123IT-64G-US-16-ST1200
List Price:$16,999.00
Our Price: $16,653.00
QNAP ES1686dc-2123IT-64G-US 224TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 16)
#ES1686dc-2123IT-64G-US-16-ST1400
List Price:$18,500.00
Our Price: $17,859.00
ES1686dc-2145NT-128G-US Seagate Bundles with Nytro SSD
QNAP ES1686dc-2145NT-128G-US 54.4TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-128G-US-16-ST400N
List Price:$18,999.00
Our Price: $16,026.00
QNAP ES1686dc-2145NT-128G-US 78.4TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-128G-US-16-ST600N
List Price:$15,699.00
Our Price: $15,434.00
QNAP ES1686dc-2145NT-128G-US 102.4TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-128G-US-16-ST800N
List Price:$20,995.00
Our Price: $20,048.00
QNAP ES1686dc-2145NT-128G-US 150.4TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-128G-US-16-ST1200N
List Price:$21,995.00
Our Price: $21,595.00
QNAP ES1686dc-2145NT-128G-US 174.4TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-128G-US-16-ST1400N
List Price:$22,999.00
Our Price: $22,660.00
ES1686dc-2145NT-96G-US Seagate Bundles with Nytro SSD
QNAP ES1686dc-2145NT-96G-US 54.4TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-96G-US-16-ST400N
Our Price: $17,889.00
QNAP ES1686dc-2145NT-96G-US 78.4TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-96G-US-16-ST600N
List Price:$17,995.00
Our Price: $14,469.00
QNAP ES1686dc-2145NT-96G-US 102.4TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-96G-US-16-ST800N
Our Price: $19,084.00
QNAP ES1686dc-2145NT-96G-US 150.4TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-96G-US-16-ST1200N
List Price:$22,995.00
Our Price: $20,631.00
QNAP ES1686dc-2145NT-96G-US 174.4TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-96G-US-16-ST1400N
List Price:$21,999.00
Our Price: $21,695.00
ES1686dc-2145NT-64G-US Seagate Bundles with Nytro SSD
QNAP ES1686dc-2145NT-64G-US 54.4TB Bundle with Seagate Enterprise 4TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-64G-US-16-ST400N
List Price:$17,195.00
Our Price: $15,960.00
QNAP ES1686dc-2145NT-64G-US 78.4TB Bundle with Seagate Enterprise 6TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-64G-US-16-ST600N
List Price:$17,995.00
Our Price: $12,540.00
QNAP ES1686dc-2145NT-64G-US 102.4TB Bundle with Seagate Enterprise 8TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-64G-US-16-ST800N
Our Price: $17,9154.00
QNAP ES1686dc-2145NT-64G-US 150.4TB Bundle with Seagate Enterprise 12TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-64G-US-16-ST1200N
List Price:$18,955.00
Our Price: $18,701.00
QNAP ES1686dc-2145NT-64G-US 174.4TB Bundle with Seagate Enterprise 14TB Hard Disk Drive (QTY 12) and Nytro 1.6TB SSD (QTY 4)
#ES1686dc-2145NT-64G-US-16-ST1400N
List Price:$19,995.00
Our Price: $19,766.00
