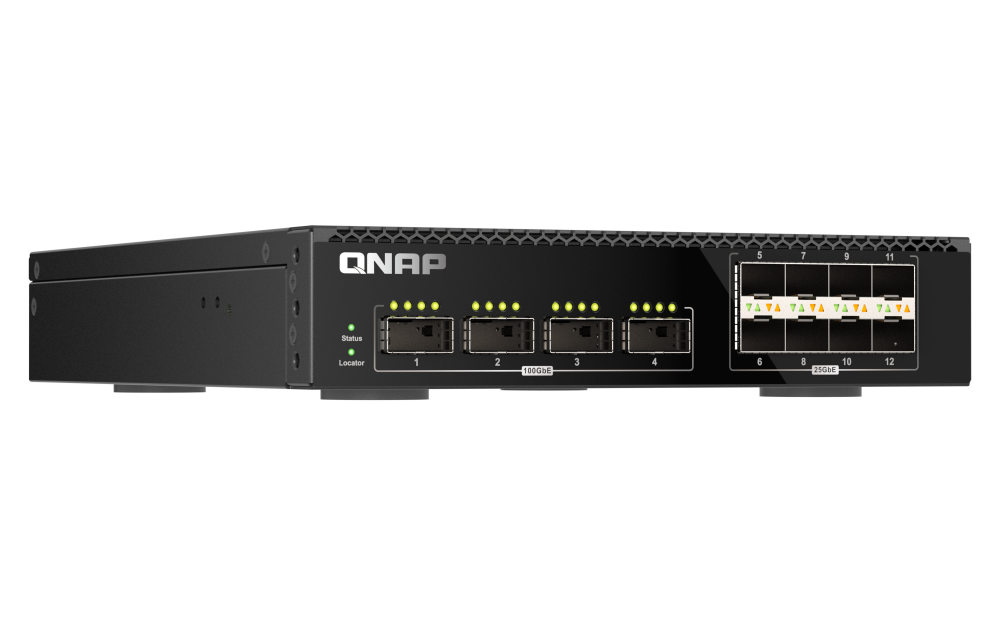

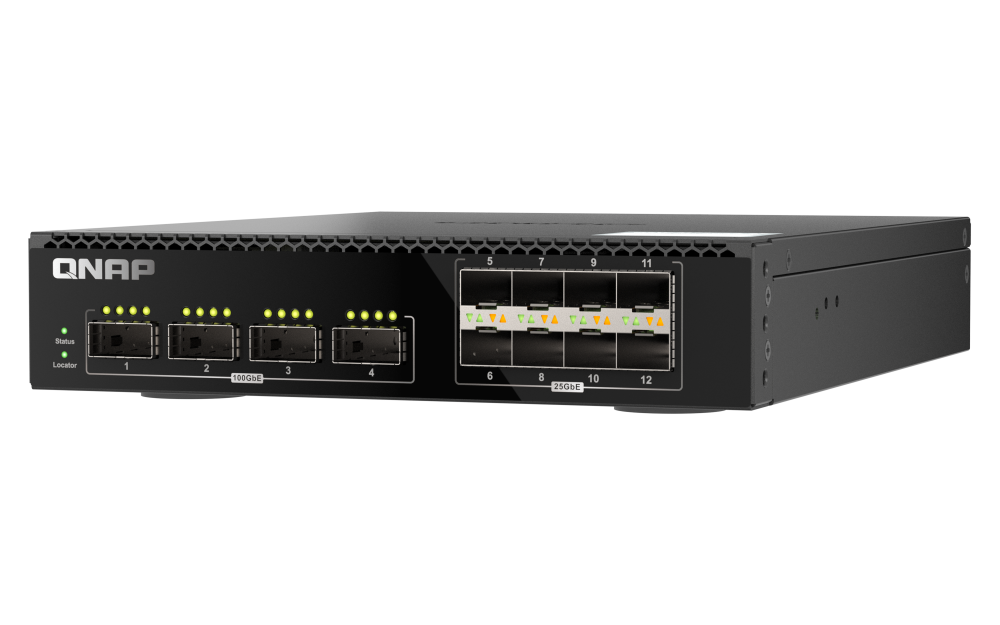

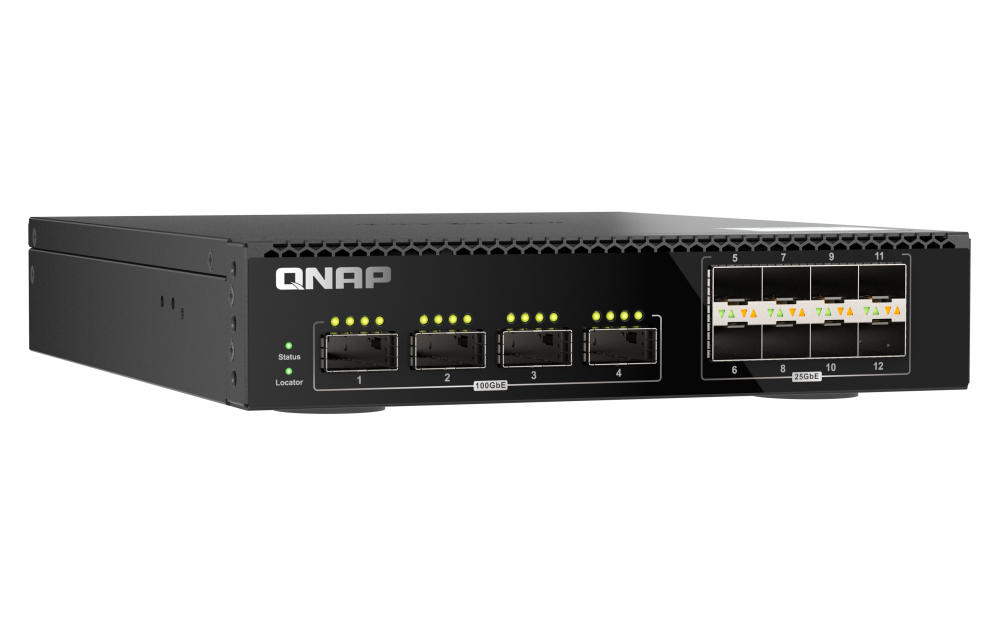

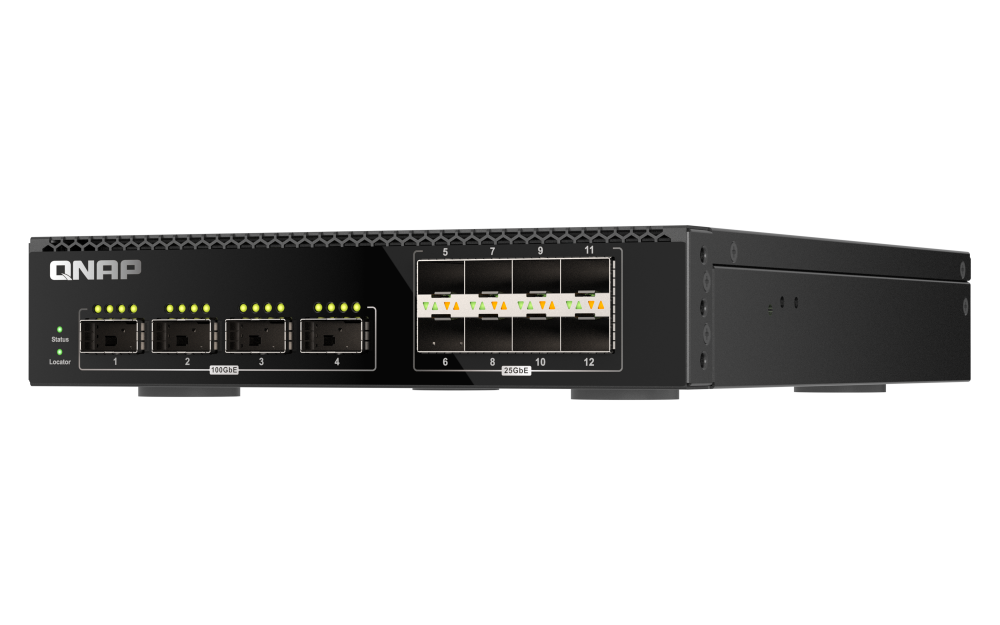

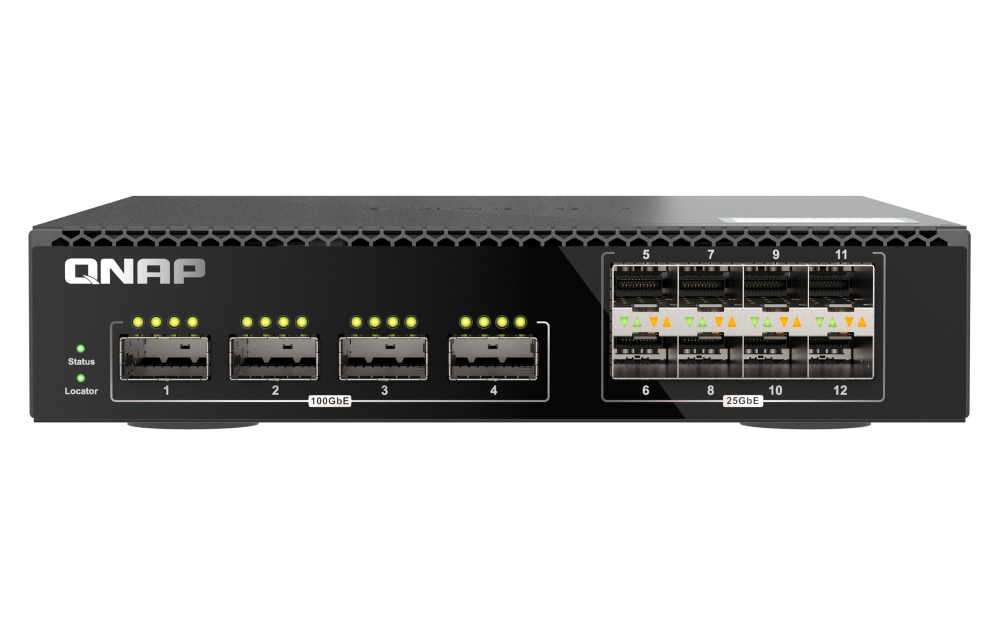

QNAP QSW-M7308R-4X
Half-width Rackmount 100GbE Managed Switch, cost-optimized for enterprise IT



QNAP Products
QNAP Web Managed Switches
QNAP Half-Rackmount Switch QSW-M7308R-4X-US, layer 2 12 port managed switch, 4 port 100GbE QSFP28 & 8 ports 25GbE SFP28, Easy management with web browser.
Marvell 98DX7324, 8 Gbit (1GB) DDR3L
#QSW-M7308R-4X-US
Our Price: $999.00

Click here to jump to more pricing!

Package Content

  • QNAP QSW-M7308R-4X Switch
  • Power cord
  • Rackmount kit
  • Foot pads
  • Screw
  • Quick Installation Guide

Overview:

The QSW-M7308R-4X is a 100GbE L2 Managed Switch with four 100GbE QSFP28 and eight 25GbE SFP28 ports. The QSW-M7308R-4X can uplink to 100G/25G servers and NAS in server rooms or connect to 100G/25G switches to accelerate high-speed storage, video editing, virtualization, and AI applications. With competitive pricing and space-saving features, the QSW-M7308R-4X enables businesses to quickly upgrade to an ultra-high-speed backbone network infrastructure for building ultra-high-speed network transmission and storage solutions. The QSW-M7308R-4X is made in Taiwan (MIT), providing a high-quality and reliable networking solution.


100GbE/25GbE Network

Includes four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports to offer a backbone switching capacity of 1200Gbps for uplinking server rooms.

User-friendly management interface

The user-friendly QNAP Switch System (QSS) centralizes and simplifies central network management with an overview dashboard, port management, and settings guide.

Layer 2 network

Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for efficiently controlling network bandwidth and enhancing security.

Space-saving half-width design

One of the few compact 100GbE switches on market, the QSW-M7308R-4X, can be installed in a 1U rack space with another half-width rackmount switch for efficient physical space utilization.

Compatible with QNAP NAS

Supports FEC (Forward Error Correction) and IEEE-802.3ap Auto-Negotiation for high compatibility to connect to QNAP 25GbE NAS or NAS installing 100G network cards for high-performance, low-latency computing.

Online firmware update

QSS can be updated with just one click, helping IT staff ensure their network security.

Features:

Embrace the ultra-high-speed 100GbE network generation!

According to market research, the demand for 100GbE switches has taken off in 2023. Enterprises, hyperscalers, and service providers worldwide continue to invest in higher-speed network infrastructure to support higher-speed servers and higher bandwidth demands of new applications such as Generative AI workloads.


With the prevailing 10GbE and 25GbE networks, explosive growth of big data transmission and high-density workloads is driving demands for ultra-high-speed 100GbE networks. The QSW-M7308R-4X 100GbE switch assists enterprises in deploying 100GbE networks in the existing network infrastructure with cost-effectiveness, resolving performance bottlenecks.


Media professionals

4K/8K video transmission

Storage Centers

Big Data applications

Medium to large enterprises

Cloud & AI computing

Smart medicine

DNA sequence computing


The best 100GbE network switch for SMBs

Cost-optimal

The QSW-M7308R-4X offers 1200Gbps switching capacity at a budget-friendly price. Businesses can flexibly deploy medium-to-large scale high-speed network infrastructure using the QSW-M7308R-4X coupled with QNAP 25GbE/10GbE switches.

Compact

Two half-width rackmount QSW-M7308R-4X can be installed in a 1U rack space, or with another half-width rackmount switch.

Best for QNAP NAS

Ultra-high-speed 100GbE switches can connect to QNAP 25GbE NAS or NAS installing 100G network cards fulfilling high bandwidth demands for high-density I/O data transmission.

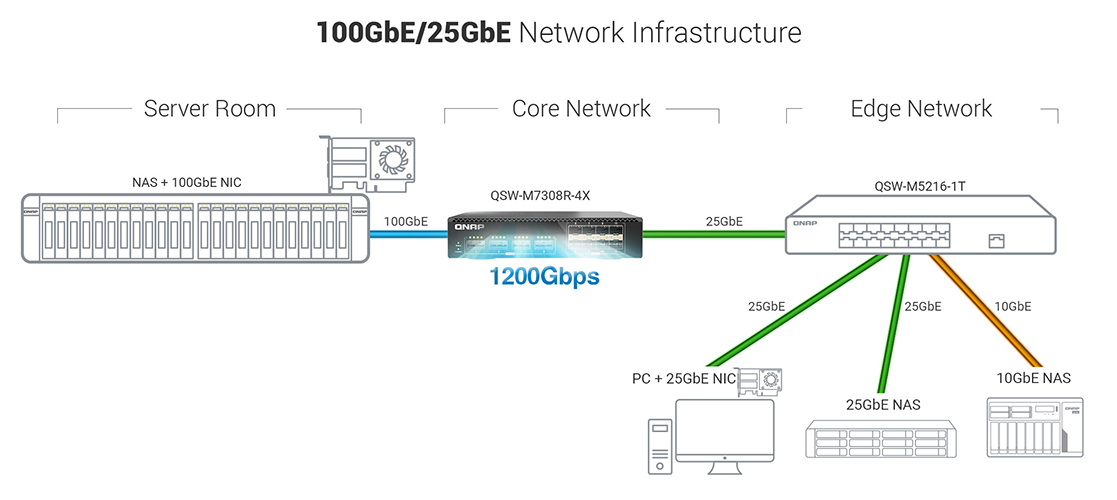

High switching capacity of 1200Gbps for backbone networks

The QSW-M7308R-4X has four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports and offers a backbone switching capacity of 1200Gbps, guaranteeing the full potential of each port. The QSW-M7308R-4X can uplink to 100G servers and NAS in server rooms or connect to 25GbE switch QSW-M5216-1T.

High switching capacity of 1200Gbps

Half-width design, 2 models in 1U

With a half-width rackmount design, a QSW-M7308R-4X can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M7308R-4X and QSW-M3216R-8S8T) for efficient physical space utilization and tidy cabling.

Note: The optional SP-EAR-QSW2FOR1-01 rackmount kit is required if two half-width rackmount switches are installed.


Flexible deployment with multiple 100GbE and 25GbE ports

The QSW-M7308R-4X has four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports for enabling hybrid high-speed networks. Its 25GbE SFP28 interfaces are backward compatible with 10GbE SFP+/1GbE SFP interfaces, and the 100GbE QSFP28 interface can be uplinked to 100GbE+ core switches, or connected to 100GbE+ servers/NAS directly.*

Note: The 100GbE QSFP28 interfaces DO NOT support breakout cables.

100GbE QSFP28

Use QSFP28 DAC (Direct Attach Copper) or transceivers to connect to servers and switches with 100GbE QSFP28 interfaces, or NAS installing 100GbE network cards.

25GbE SFP28

Use SFP28 DAC (Direct Attach Copper) or transceivers to connect to NAS, servers, and switches with 25GbE SFP28 fiber interfaces.


Pair with a NAS and 100GbE network expansion card for high-performance, low-latency computing

Connect a QSW-M7308R-4X to multiple NAS with 100GbE/25GbE network cards to offer 100GbE/25GbE connectivity. Up to 200GbE network transmission can be achieved connecting to a NAS with a QXG-100G2SF-CX6 installed.

100GbE to 100GbE with more NAS

Connect multiple NAS with the QXG-100G2SF-CX6 or QXG-100G2SF-E810 installed to form a high-speed storage environment.

Up to 200GbE total bandwidth for NAS

Connect two 100GbE ports on the QXG-100G2SF-CX6 to the QSW-M7308R-4X to achieve 200Gb total bandwidth for the NAS.


QSS: Human-centered settings guide

The QSW-M7308R-4X uses the QNAP Switch System (QSS), featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.


Overview Dashboard

View real-time system information, port connection status, and port traffic.

Port Management

View port status, port packet statistics, and configure port speeds.

Setting Guide

Quickly learn how to set up the network using the introduction and step-by-step guide.


Exclusive Status Chart Referencing

Refer to four status charts during configuration and avoid going back and forth between settings pages.

Online Firmware Check and Update

Keep your QNAP switch secure with one-click firmware updates


Optimize Network Performance with bandwidth and packet control

The QSW-M7308R-4X provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

LACP VLAN QoS
Link Aggregation combines multiple network connections to increase throughput and protect against connection failure. Virtual Networks allows groups of devices from different networks to be combined into a single network. QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.
IGMP Snooping Forward Error Correction (FEC)
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage. FEC helps overcome packet loss – a potentially common occurrence in fast, long-distance networks. With FEC the receiving side can detect and recover lost data to fix bit errors, thus ensuring reliable data transmission over “noisy” channels. Unlike common switches only supporting FEC, IEEE-802.3ap Auto-Negotiation is also supported for high compatibility in QSS.

Powerful security and system functions

The QSW-M7308R-4X has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL LLDP RSTP Flow Control
Filters packets based on rules to offer firewall-like security protection. Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes. Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic. Balances traffic between a sender and a receiver to avoid network congestion.

Dependable performance with effective heat dissipation

With a compact metal body, the QSW-M7308R-4X provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.


Extend hardware warranty up to 5 years

The QSW-M7308R-4X is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specifications:

  QSW-M7308R-4X
Management Type Web Managed
Number of Ports 12
100GbE QSFP28 4
25GbE SFP28 8
Management Port 1 x 1GbE RJ45
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 100W
Input Power Type AC
Input Voltage Range 100 ‒ 240VAC, 50/60Hz
MAC Address Table 32K
Total Non-Blocking Throughput 600Gbps
Switching Capacity 1200Gbps
Management Interface Web
Console RJ45
Fan PWM VAPO Bearing fan x 2
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.1p Class of Service
Form Factor Half-width rackmount
LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status/Locater
Buttons Reset button
Dimensions (HxWxD) 43.3 x 207 x 248.8 mm
Weight (Net) 3.92 lbs
Weight (Gross) 5.8 lbs
Operating Temperature 0˚C to 40°C (32°F to 104°F)
Relative Humidity 5%–95% (non-condensing)
Certifications CE, FCC, VCCI, BSMI
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
