QNAP TS-2483XU-RP
Enterprise NAS with server-grade Intel® Xeon® E processor and ECC memory for high performance and reliability

Sorry, this product is no longer available, please contact us for a replacement.


Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Overview:

The Intel® Xeon® E based TS-2483XU-RP enterprise NAS with up to 64 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features Mellanox® ConnectX®-4 Lx 10GbE controllers that not only fulfill bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-2483XU-RP provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking & virtual switch, and much more.

Package Content

  • TS-2483XU-RP
  • 2 x Ethernet Cables
  • 2 x Power Cords
  • 96 x Flat Head Screws (for 3.5" HDD)
  • 96 x Flat Head Screws (for 2.5" HDD)
  • Quick Installation Guide (QIG)

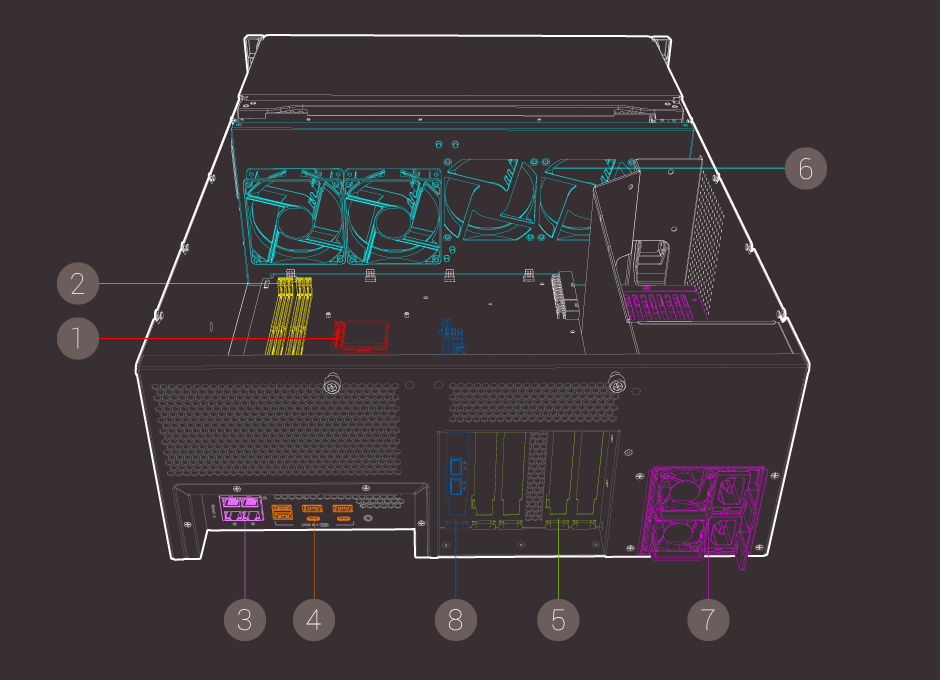

Server-grade hardware: Sturdy and expandable

The TS-2483XU-RP features outstanding hardware and expandable architecture, enabling optimum performance and flexibility to fulfill business needs in performance and application diversification.

overview-1
  1. Intel® Xeon® E processor
  2. DDR4 ECC memory
  3. 4x Gigabit Ethernet ports
  4. USB 3.1 Gen2 ports
  5. 5x PCIe expansion slots
  6. System fans
  7. Power supply unit
  8. 2x 10GbE SFP+ ports


Dual 10GbE connectivity optimizes high-speed data transfer and VMware virtualization with iSER

Powered by a high-performance AMD Ryzen™ 7 2700, AMD Ryzen™ 5 2600 or AMD Ryzen™ 3 1200 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-2483XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-2483XU-RP.

overview-2

overview-3

10GbE/ 40GbE adapters

Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.



Empower GPU-accelerated computing with graphics cards

Graphics cards are optimized for graphical calculations and transformations. The TS-2483XU-RP provides PCIe slots for installing an AMD Radeon™ or NVIDIA® graphics card to boost data-intensive AI machine learning, while also providing benefits for imaging processing and virtual machine performance (via GPU passthrough).

Note:
1. 3U/4U models support high-profile graphics cards that require external power; 1U/2U models support low-profile graphics cards that do not require additional external power (For example, the NVIDIA GT1030).
2. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for VM is supported by AMD and NVIDIA graphics cards.
3. When Virtualization Station uses graphics cards, the NAS will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
4. Always consult the Compatibility List for supported NAS and graphics cards before purchasing a graphics card for the NAS.

overview-4

overview-5

SSD caching and auto tiering enable 24/7 optimized storage efficiency

By enabling Qtier™ auto-tiering on the TS-2483XU-RP, organizations can just buy the amount of SSDs needed, and attain the highest value/performance and optimal storage efficiency for data storage and sharing.

Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. The TS-2483XU-RP also supports write-only SSD caches to greatly boost write-intensive applications and also RAID 5/6 SSD caches for higher performance and caching space.

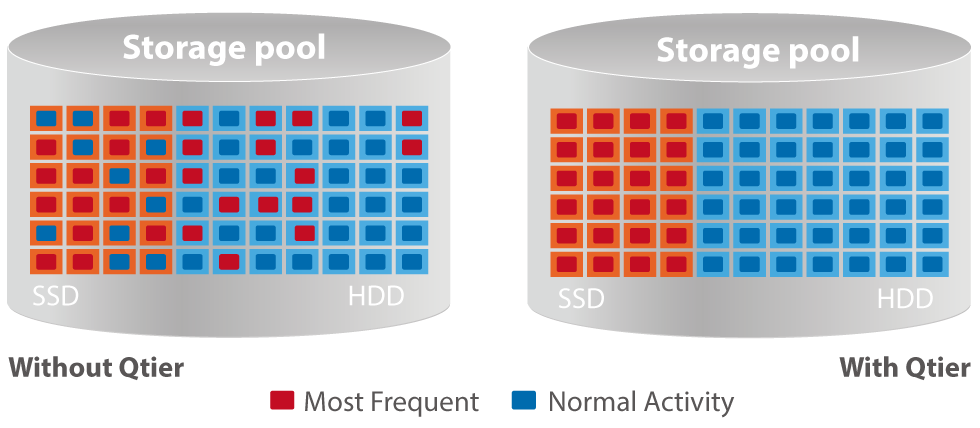

Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TS-2483XU-RP with auto tiering that helps continuously optimize storage efficiency by automatically moving data between 2.5-inch SSDs and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

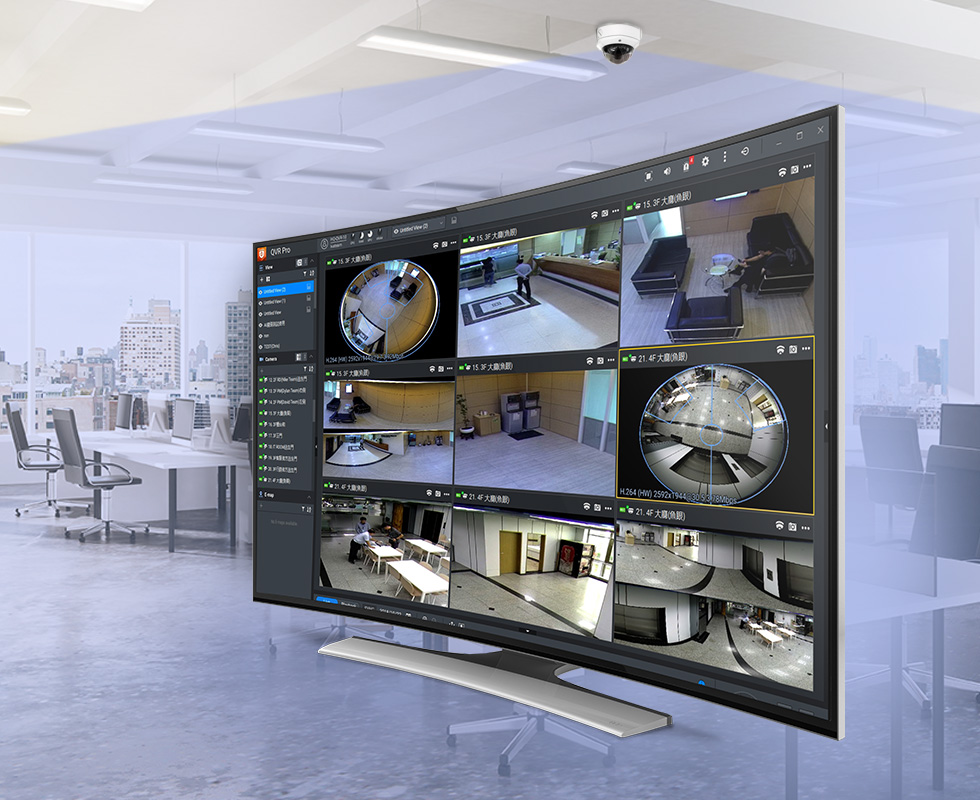

Up to 128 monitoring channels in QVR Pro for well-rounded security surveillance

The TS-2483XU-RP supports QVR Pro surveillance solution with 8 license-free channels for surveillance monitoring, which can be expanded up to 128 channels* with additional channel license purchase for a more extensive security deployment. QVR Pro supports over 5,000 IP cameras, including all of the standard fisheye cameras available on the market. There are more advanced features for fully unleashing the potential of fisheye cameras: allowing a single fisheye camera’s image to be simultaneously viewed in nine channels from different angles, and cross-platform hardware-accelerated decoding for fisheye camera images. QVR Pro ensures higher surveillance performance for greater security while providing deployment flexibility and budget-savings.

overview-6

overview-6

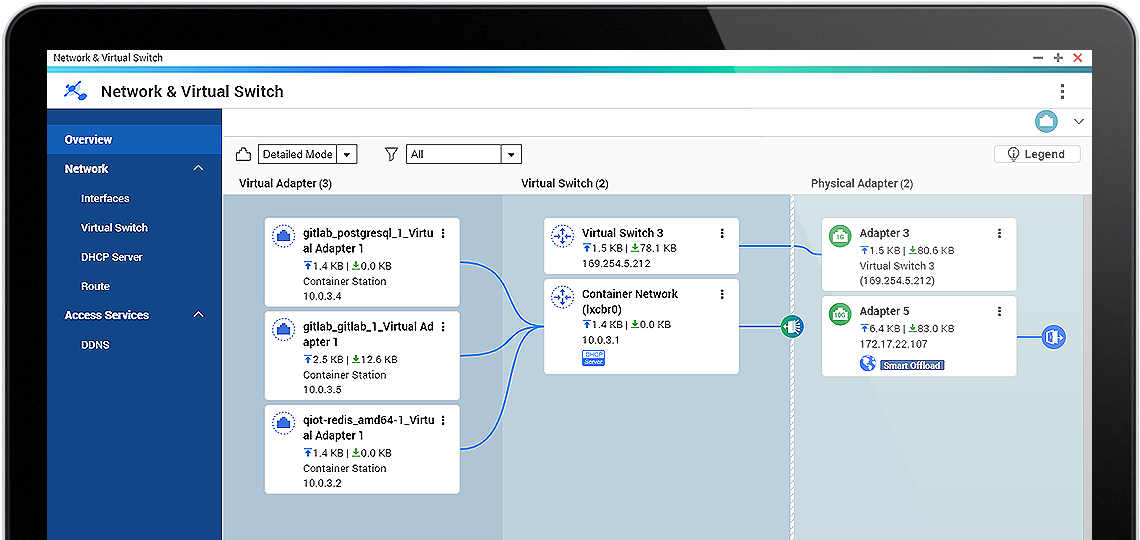

Flexibly allocate physical and virtual network resources to simplify network deployment

The Network & Virtual Switch application allows you to leverage limited physical network resources for unlimited virtual applications and centrally manage the entire network structure with a brilliantly-visualized network topology map. Flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TS-2483XU-RP, virtual machines and containers whenever needed. The network deployment is greatly simplified while your network management efficiency is greatly improved.



Features:

DDR4 ECC memory detects and then corrects single-bit memory errors, demonstrating high reliability for crucial applications.

Two 10GbE SFP+ SmartNIC ports with iSER support accelerate large file sharing, intensive data transfer, and VMware virtualization applications.

PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.

Supports VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016 virtualization with reliability and cost-efficiency.

Software-defined SSD extra over-provisioning combats write amplification and optimizes SSD random write speeds for IOPS-demanding applications.

Comprehensive security management, providing a security portal for your NAS and helping you to stay informed of NAS status at all times.

Specifications:

CPU Intel® Xeon® E-2136 6-core 3.3 GHz processor (burst up to 4.5 GHz)
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 16 GB UDIMM DDR4 ECC (2 x 8GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x DDR4 long DIMM
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 24 x 3.5-inch
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 4
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Jumbo Frame

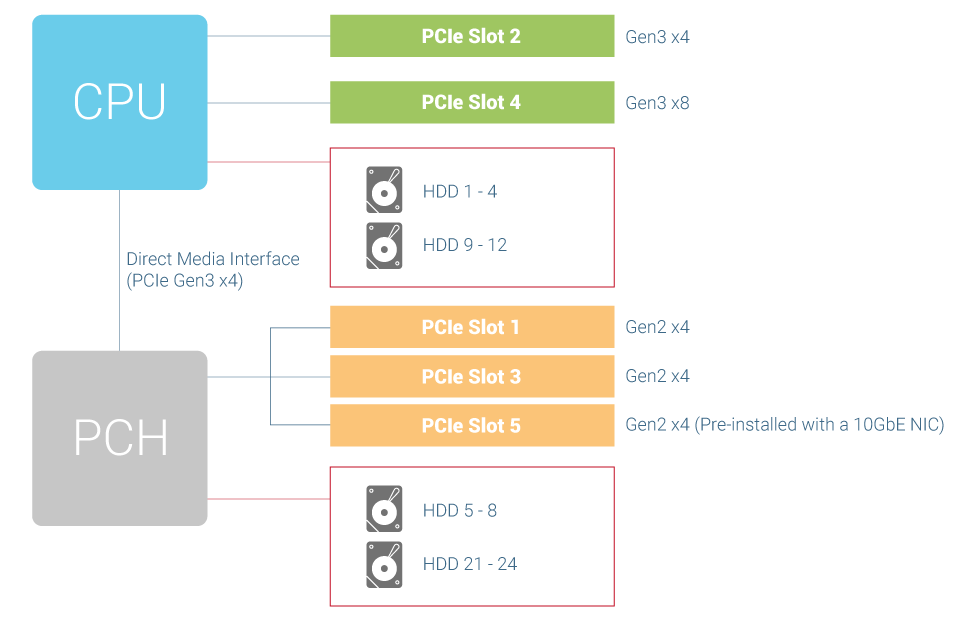

PCIe Slot 5
Slot 1: PCIe Gen2 x4 (PCH)
Slot 2: PCIe Gen3 x4 (CPU)
Slot 3: PCIe Gen2 x4 (PCH)
Slot 4: PCIe Gen3 x8 (CPU)
Slot 5: PCIe Gen2 x4 (PCH)
Slot 5 is preinstalled with a 10GbE network adapter
USB 3.1 Gen 2 (10Gbps) Port 2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps
4 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
Form Factor 4U Rackmount
LED Indicators HDD 1-24, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 6.94 × 18.94 × 26.46 inch
Weight (Net) 45.57 lbs
Weight (Gross) 62.96 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 800W(x2), 100-240V
Power Consumption: Operating Mode, Typical 168.97 W
With drives fully populated
Fan System: 4 x 9.2cm fan (12V DC)
Sound Level 28.7 db(A)
System Warning Buzzer
Kensington Security Slot

Documentation:

Datasheet for QNAP TS-2483XU-RP is coming soon.
