QNAP TS-453D
Quad-core 2.5GbE NAS for professionals, supporting PCIe expansion for 10 Gbps or M.2 SSDs to accelerate applications


Sorry, this product is no longer available, please contact us for a replacement.


Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

  • QNAP TS-453D Storage
  • 2 x Ethernet cables
  • 1 x Power cords
  • Flat head screw (for 3.5" HDD)
  • Flat head screw (for 2.5" HDD)
  • AC Adapter
  • Quick Installation Guide

Overview:

The new-gen Wi-Fi 6 (802.11ax) trend has driven higher bandwidth demands for wired and wireless network connections. By integrating Intel® Celeron® J4125 quad-core 2.0 GHz processor and 2.5GbE connectivity, the TS-453D not only provides modern businesses an excellent NAS solution to upgrade to 2.5GbE environments for productive daily backup/restore tasks, but also provides gamers with ample storage for their vast game collections. Up to 5 Gbps transfer speeds can be made by setting port trunking with the two built-in 2.5GbE ports. The TS-453D also supports PCIe expansion, multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.



Available Models

  • TS-453D-8G-
    Intel® Celeron® J4125 quad-core 2.0 GHz processor (Bursts up to 2.7 GHz), 8 GB DDR4 memory (2 x 4 GB)

  • TS-453D-4G-
    Intel® Celeron® J4125 quad-core 2.0 GHz processor (Bursts up to 2.7 GHz), 4 GB DDR4 memory (1 x 4 GB)

2.5GbE ports

Dual 2.5GbE ports accelerates file sharing across teams and devices or gaming storage applications.

PCIe expansion

PCIe expansion allows for a Multi-Gig 10GbE or 5GbE network card, or a QM2 card to add M.2 NVMe or SATA SSDs for caching.

4K media

4K media playback and real-time transcoding; directly watch videos on an HDTV via HDMI 2.0 (4K @60Hz) output.


HBS

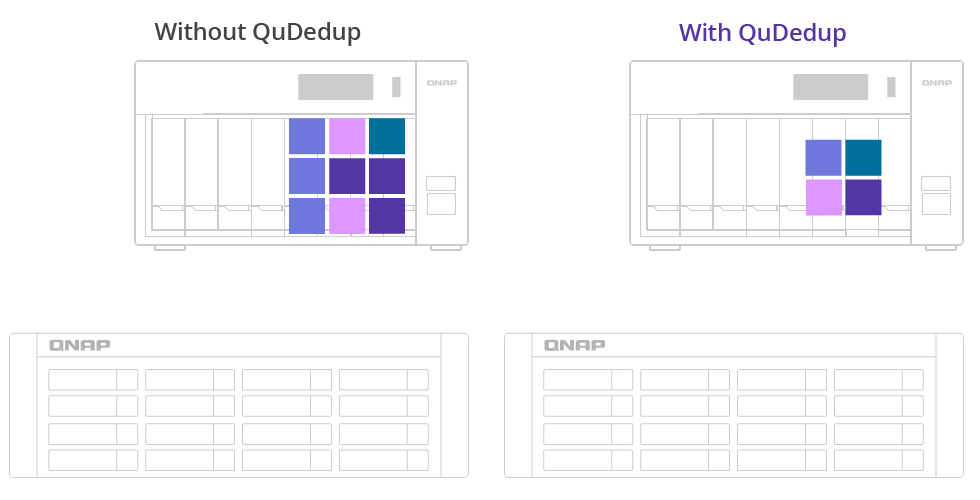

HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to reduce storage space usage, bandwidth usage, and backup time.

Cloud storage

Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

multiple virtual machines

Hosts multiple virtual machines and containers to execute different applications in one NAS device.

Features:

Upgrade your NAS to 2.5GbE networks

The TS-453D comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps! By using QNAP’s N-BASET/Multi-Gig USB 3.2 Gen 1 to 5GbE adapter (Model name QNA-UC5G1T) or 5GbE PCIe expansion card (Model name QXG-5G1T-111C), your laptop or desktop computer can easily connect to 2.5GbE networks with the TS-453D to benefit from higher network speeds.

virtualization-applications-icon

Virtualization
Satisfies bandwidth-demanding applications such as virtual machines and containers.

video-streaming-icon

Video Streaming
Boosts transfer speeds to improve smooth 4K video streaming and display.

gaming-game-store-icon

Gaming Storage
Mount an iSCSI LUN from the TS-653D to your computer to store your vast game collections.


Transform your network with a wallet-friendly 2.5GbE switch

Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.

QSW-1105-5T 2.5GbE switch


Quad-core 2.0 GHz (burst up to 2.7 GHz) with up to 8 GB memory

The TS-453D is powered by an Intel® Celeron® J4125 quad-core 2.0 GHz processor (bursts up to 2.7 GHz), features up to 8 GB DDR4 memory, and supports SATA 6 Gb/s drives. The support of Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of your NAS data. You can flexibly install SSDs for cache acceleration to maximize network and storage performance for data-intensive applications.


A secure data center for backing up device data with snapshot protection

icon-1

Windows® and Mac® backup
Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows® computers. Apple’s Time Machine® is supported for backing up Mac® computers.

icon-2

Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes it a dependable data protection method in the face of growing ransomware threats. The TS-453D supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.


Increase HBS backup efficiency with 2.5GbE connectivity

Hybrid Backup Sync (HBS) consolidates backup, restoration and synchronization functions (using RTRR, Rsync, FTP, CIFS/SMB) for easily transferring data in the TS-453D to local, remote and cloud storage spaces (including Microsoft One Drive®, Google Drive™, Dropbox®, and more) as a comprehensive data storage and disaster recovery plan. Supporting QuDedup technology that eliminates duplicated data at the source, HBS reduces backup data size and speeds up future backup tasks. This is also beneficial for accelerating multi-version backups for greater protection against data loss.

HBS backup efficiency


Abundant I/O capability with PCIe expansion

The TS-453D features one PCIe 2.0 slot that allows for various expansion cards for expanding application potential.


SSD caching and auto-tiering enable 24/7 optimized storage efficiency

While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-453D supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.

SSD over-provisioning
(Over-provisioning)
SSD cache acceleration Qtier for auto-tiering
You can add additional SSD over-provisioning (1% ~60%) to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer SSDs! Enables SSD caching for increasing IOPS performance and reducing latency for storage volume. This feature is perfect for IOPS-demanding applications including databases and virtualization. The TS-453D also supports write-only cache to boost write-intensive applications. Qtier technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.

Ultimate visual experience with 4K HDMI display and real-time video transcoding

The TS-453D has an HDMI 2.0 port that supports 4K (4096 x 2160) 60Hz output, allowing you to directly view multimedia content saved on the NAS on a bigger screen. The support of high-quality 4K video transcoding enables the NAS to convert videos to universal file formats that can be smoothly played on multiple devices. The TS-453D also can stream videos through DLNA®, Chromecast™, and more to satisfy versatile multimedia application needs.

Note: The TS-453D’s hardware provides hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.


Build a Plex Media Server

By installing Plex® Media Server from App Center, setting up the Plex® Media Server on your NAS is only a few minutes away. You can stream media files stored on the TS-453D to mobiles and media streaming devices (including DLNA®, Roku®, Amazon Fire TV® and Google Chromecast™).

Note: PlexPass is required for Plex Media Server hardware transcoding.


Move business data to the cloud flexibly and economically

The TS-453D perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

HybridMount

HybridMount File-based Cloud Gateway

Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block

VJBOD Cloud Block-based Cloud Gateway

VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.


All-in-one server to host virtual machines and containers

Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. You can use Network & Virtual Switch to allocate adequate physical network resources to virtual machines, containers, and the NAS to simplify network deployment.

Virtualization Station

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station

Container Station

Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.


Optimized collaboration with seamless file sharing and sync

The TS-453D centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with the Qsync utility, any file uploaded to the TS-453D will be made available for all linked devices (such as computers, laptops and mobiles). You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. With the myQNAPcloud service, you can easily and securely connect to the TS-453D via the Internet for accessing, managing, and sharing NAS files. The Windows AD® and LDAP services enable system administrators to configure user permissions by using an existing Windows AD® server, LDAP server, or the TS-453D’s built-in LDAP service.


Secure your premises with integrated surveillance solutions

QVR Pro allows you to arrange a dedicated, independent storage space for surveillance data on the TS-453D and leverage the advantages of scalable NAS storage. It greatly simplifies camera management, storage space allocation, camera live view, and playback. Supporting over 5,000 IP cameras (including all standard fisheye cameras available on the market), QVR Pro provides 8 license-free channels for surveillance monitoring and the optional QVR Pro Camera Channel Extension License for more extensive security deployment. You can also use QVR Pro Client’s mobile app to monitor anytime, or use a USB webcam as an ONVIF® network camera with the QUSBCam2 app.

*The maximum number of channels supported varies by NAS model, network configuration, and camera settings.

More productivity applications

Notification Center

Notification Center

Consolidates all QTS system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

Security Counselor

Security Counselor

A security portal for checking weaknesses and providing recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

qsirch-icon

Qsirch

QNAP’s powerful, Google-like search tool for quickly finding specific images, music, videos, documents, and emails by keywords, color, and more search conditions.


Boxafe

Boxafe

Allows you to backup or sync files, emails, calendars and contacts from Google™ G Suite and Microsoft® Office 365® into the NAS to safeguard enterprise cloud data.

qumagie-mobile_icon

QuMagie

An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tool for ultimate photo management and sharing solution.

Qmiix-icon

Qmiix

An Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.


Expand your Storage with USB 3.2 Gen 2 (10 Gbps) - Better than eSATA!

Flexibly expand the storage capacity of the TS-453D via USB or multi-lane SATA interfaces. You can choose a high-speed USB 3.2 Gen 2 (10 Gbps) TL series JBOD, USB 3.2 Gen 1 (5 Gbps) TR series RAID expansion enclosures, or SATA 6Gbps TL series JBOD. They provide economical, flexible, high-performance and high-capacity storage expansion solutions for NAS, PC and servers.

Note: A USB 3.2 Gen 2 PCIe card or QXP SATA expansion card is required for using a compatible expansion enclosure.

Flexible and economical storage expansion

QNAP provides easy storage capacity expansion solutions. Here are several ways to expand your TS-453D storage as needed to accommodate data and business growth.

vjbod_icon_01

Upgrade RAID Capacity

Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

vjbod_icon_02

Attach Expansion Enclosures

Connect two TR-004 RAID expansion enclosures, or one 8-bay TL-D800C USB 3.2 Gen 2 JBOD, or one 16-bay TL-D1600S SATA 6 Gb/s JBOD, and use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.

vjbod_icon_03

Migrate to a New NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.


Extend hardware warranty up to 5 years

The TS-453D is backed by a 3-year warranty at no additional costs. You can purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specifications:



  TS-453D-8G TS-453D-4G
CPU Intel® Celeron® J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz)
CPU Architecture 64-bit x86
Graphic Processors Intel® HD Graphics 600
Floating Point Unit
Encryption Engine (AES-NI) (AES-NI)
Hardware-accelerated Transcoding
System Memory 8 GB SO-DIMM DDR4 (2 x 4 GB) 4 GB SO-DIMM DDR4 (1 x 4 GB)
Maximum Memory 8 GB (2 x 4 GB)
Memory Slot 2 x SO-DIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory 4 GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 SSD Slot Optional via a PCIe adapter
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via PCIe expansion card
10 Gigabit Ethernet Port Optional via PCIe expansion card
Jumbo Frame
PCIe Slot 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 2.0 port 3
USB 3.2 Gen 1 port 2
USB 3.2 Gen 2 (10Gbps) Port Optional via a PCIe adapter
IR Sensor (RM-IR004) (RM-IR004)
HDMI Output 1, HDMI 2.0 (up to 4096 x 2160 @ 60Hz)
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-4
Buttons Power, USB copy, Reset
Dimensions (HxWxD) 6.61 × 6.69 × 8.9 inch
Weight (Net) 5.22 lbs
Weight (Gross) 7.94 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 90W adapter, 100-240V
Power Consumption: HDD Sleep Mode 11.3 W
Power Consumption: Operating Mode, Typical 25.98 W
Fan 1 x 120mm, 12VDC
Sound Level 21.1 db(A)
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) 800
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Optional Accessories:

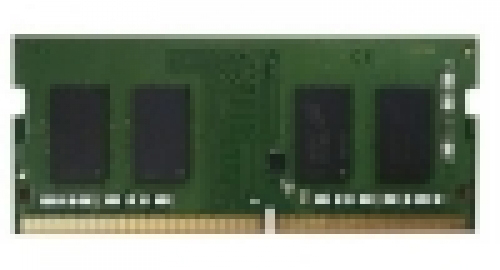

RAM-4GDR4A0-SO-2400

RAM-4GDR4A0-SO-2400

  • DDR type: DDR4(260PIN)
  • Capacity: 4GB
  • Spec: HYNIX 512M X 16
  • Manufacturer: ADATA
  • Frequency: DDR4-2400
  • Form(PIN): 260PIN
  • Manufacturer P/N: AD4S2400J4G17-BHYA
  • Power Supply: 1.2V
  • Dram Organization: 512M*64
  • Temperature: 0℃~85℃
  • Environmental Regulation: RoHS

Product Views:

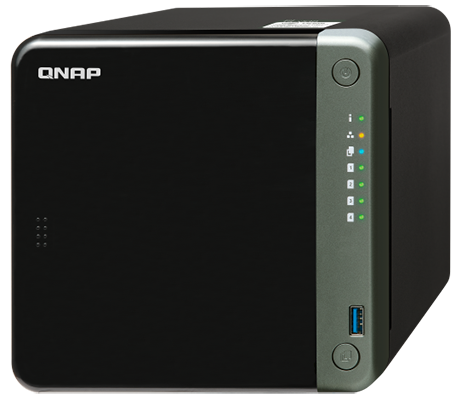

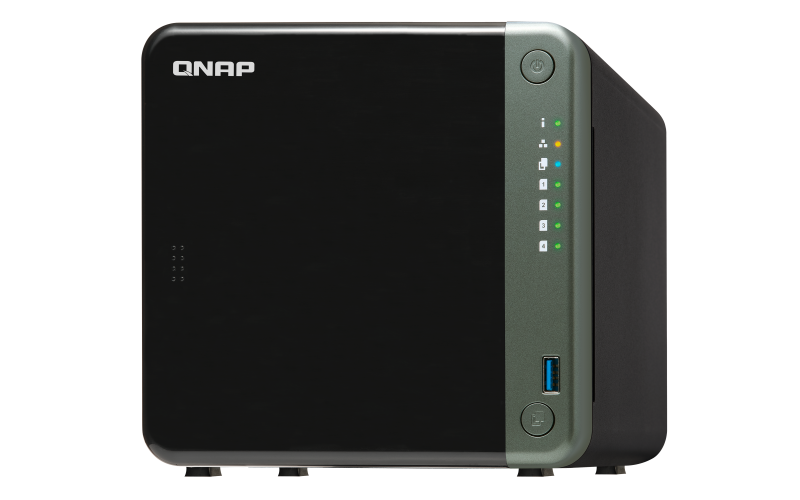

Top Right Angle View

Top Right Angle View

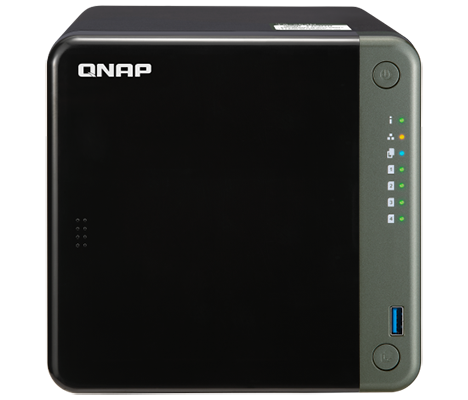

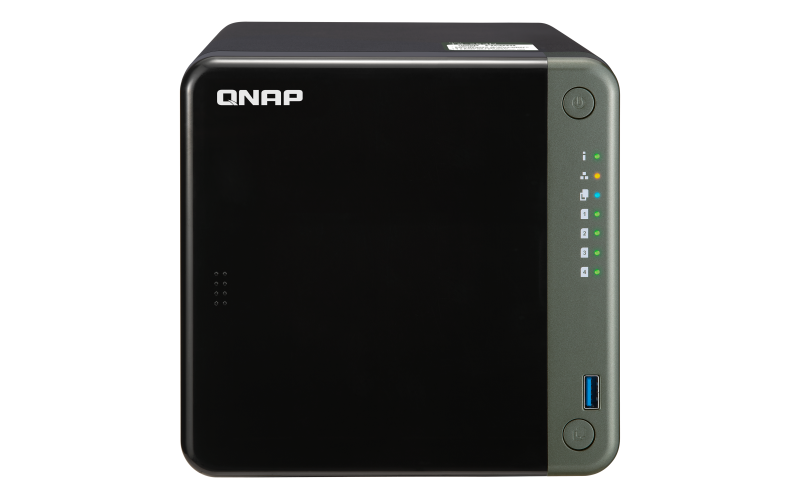

Front View

Front View

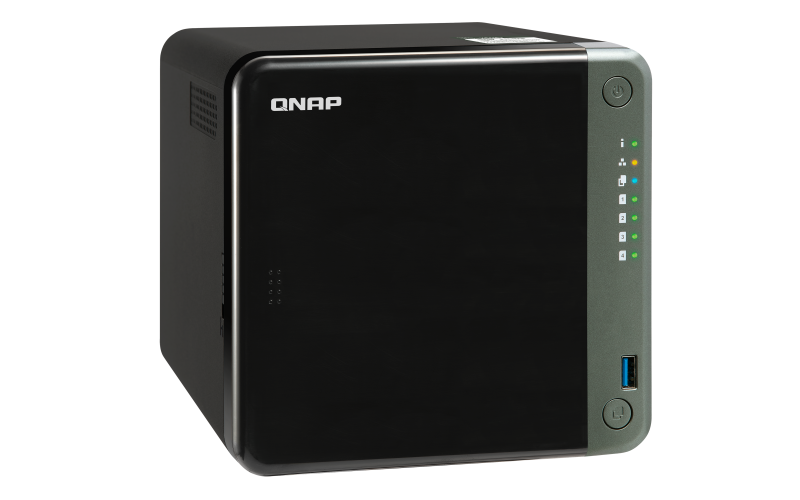

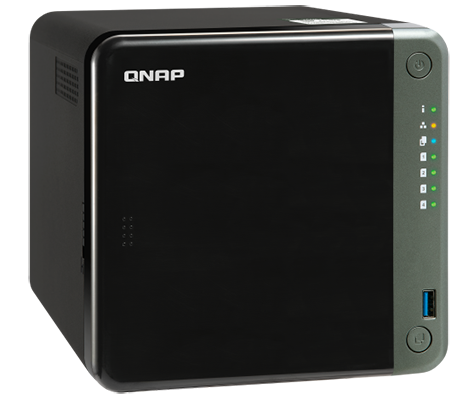

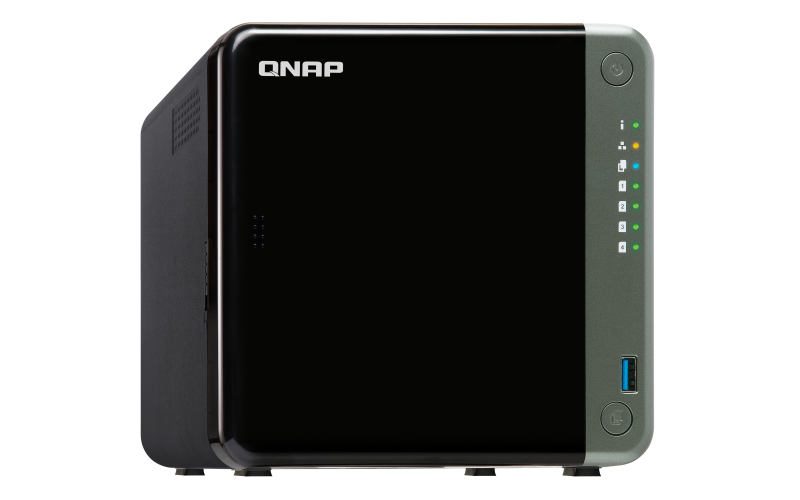

Top Left Angle View

Top Left Angle View

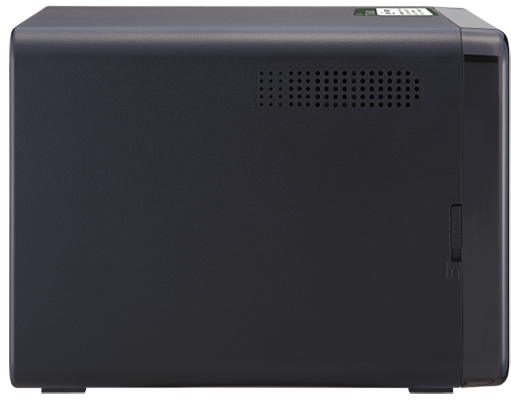

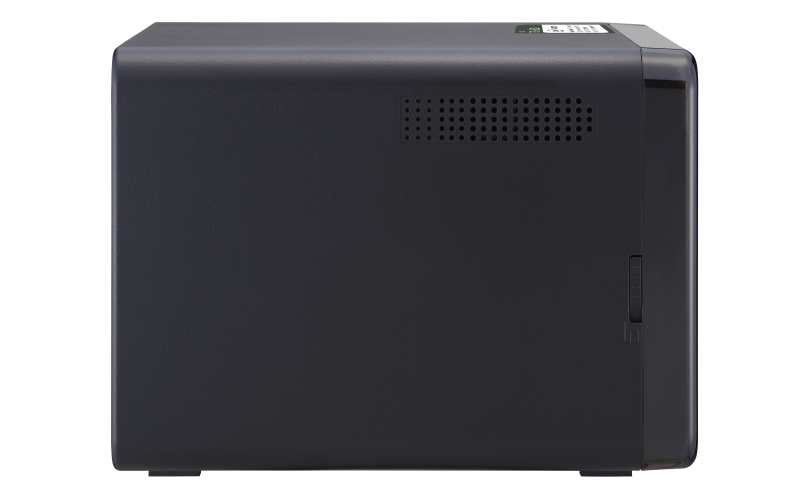

Left View

Left View

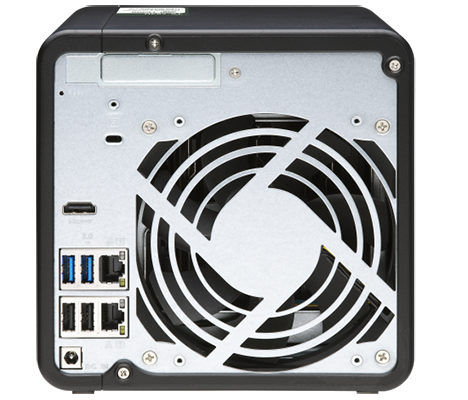

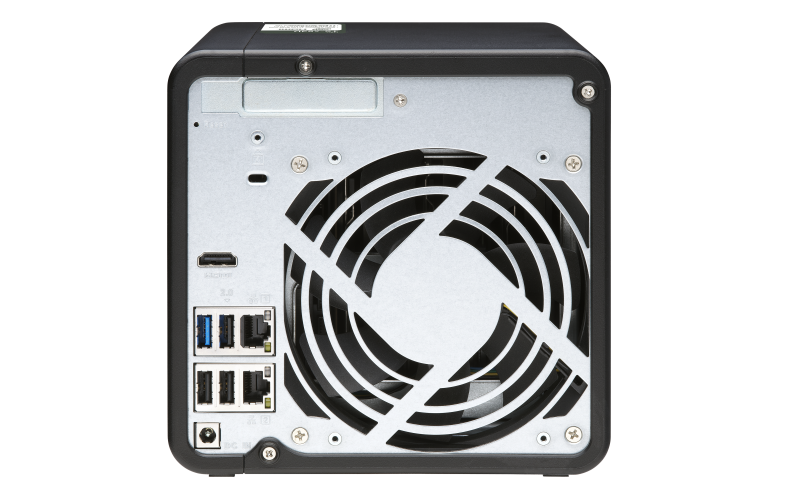

Rear View

Rear View

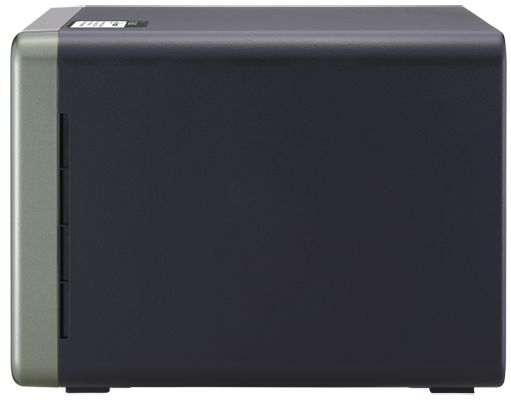

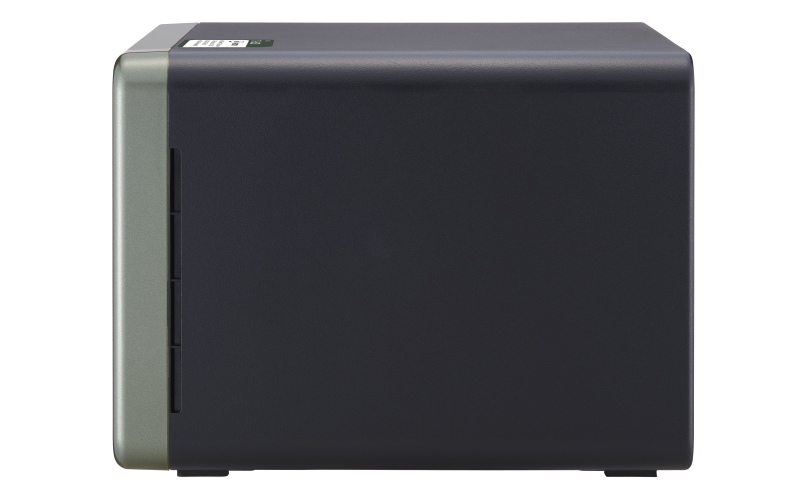

Right View

Right View

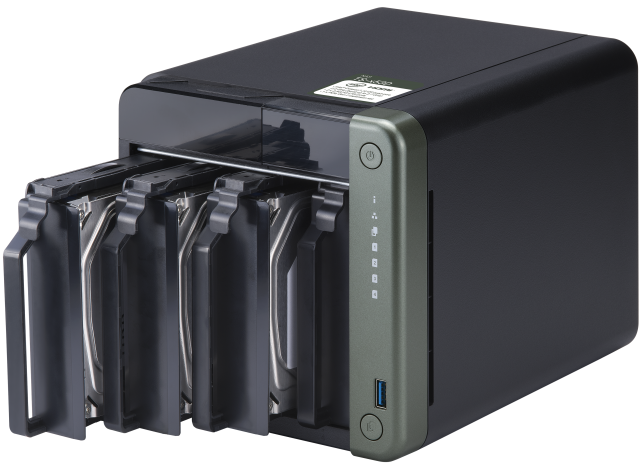

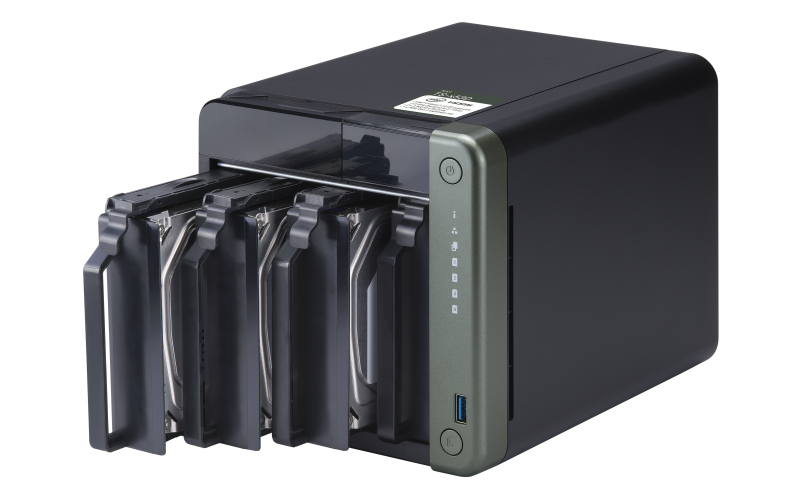

Hot-swappable View

Hot-swappable Vieww
