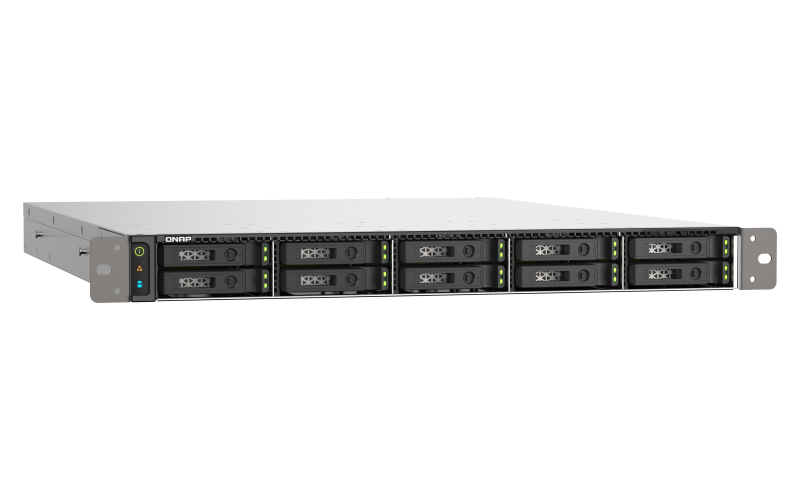

QNAP TS-h1090FU
ZFS-based, 1U high-density U.2 NVMe PCIe Gen 4 / SATA 6Gbps SSD all-flash storage built for low-latency file servers, virtualized workloads, data centers, and 4K/8K streams

QNAP Products

Enterprise Storage Products

QNAP 10-Bay 1U all flash NAS, U.2/U.3 NVMe Gen 4 x 4 and SATA 6Gbps bays
AMD EPYC 7302P 16C/32T 3.0GHz Processor boost up to 3.3GHz, 256GB RDIMM DDR4 ECC RAM (1TB Max, 12 Slots RDIMM DDR4 Slots), 10 x U.2/U.3 PCIe NVMe Gen4 x4 / SATA 6Gbps Slot, 2 x 25GbE , 2 x 2.5 GbE, 2 x PCIe Gen4 x16 slots, 2 x 550W Redundant PSU, Without Rail Kil (RAIL-B02)

#TS-h1090FU-7302P-256G-US
Get a Quote!

QNAP 10-Bay 1U all flash NAS, U.2/U.3 NVMe Gen 4 x 4 and SATA 6Gbps bays
AMD EPYC 7302P 16C/32T 3.0GHz Processor boost up to 3.3GHz, 128GB RDIMM DDR4 ECC RAM (1TB Max, 12 Slots RDIMM DDR4 Slots), 10 x U.2/U.3 PCIe NVMe Gen4 x4 / SATA 6Gbps Slot, 2 x 25GbE , 2 x 2.5 GbE, 2 x PCIe Gen4 x16 slots, 2 x 550W Redundant PSU, Without Rail Kil (RAIL-B02)

#TS-h1090FU-7302P-128G-US
Get a Quote!

QNAP 10-Bay 1U all flash NAS, U.2/U.3 NVMe Gen 4 x 4 and SATA 6Gbps bays, AMD EPYC 7302P 16C/32T Processor, 64GB RDIMM DDR4 ECC RAM, 25GbE, 2.5 GbE, PCIe Gen4 slots, Redundant PSU, Without Rail Kil (RAIL-B02)
AMD EPYC 7302P 16C/32T 3.0GHz Processor boost up to 3.3GHz, 64GB RDIMM DDR4 ECC RAM (1TB Max, 12 Slots RDIMM DDR4 Slots), 10 x U.2/U.3 PCIe NVMe Gen4 x4 / SATA 6Gbps Slot, 2 x 25GbE , 2 x 2.5 GbE, 2 x PCIe Gen4 x16 slots, 2 x 550W Redundant PSU, Without Rail Kil (RAIL-B02)

#TS-h1090FU-7302P-64G-US
Get a Quote!

QNAP 10-Bay 1U all flash NAS, U.2/U.3 NVMe Gen 4 x 4 and SATA 6Gbps bays
AMD EPYC 7232P 8C/16T 3.1GHz Processor boost up to 3.2GHz, 64GB RDIMM DDR4 ECC RAM (1TB Max, 12 Slots RDIMM DDR4 Slots), 10 x U.2/U.3 PCIe NVMe Gen4 x4 / SATA 6Gbps Slot, 2 x 25GbE , 2 x 2.5 GbE, 2 x PCIe Gen4 x16 slots, 2 x 550W Redundant PSU, Without Rail Kil (RAIL-B02)

#TS-h1090FU-7232P-64G-US
Get a Quote!

QNAP 10-Bay 1U all flash NAS, U.2/U.3 NVMe Gen 4 x 4 and SATA 6Gbps bays, AMD EPYC 7232P 8C/16T Processor, 32GB RDIMM DDR4 ECC RAM, 25GbE, 2.5 GbE, PCIe Gen4 slots, Redundant PSU, Without Rail Kil (RAIL-B02)
AMD EPYC 7232P 8C/16T 3.1GHz Processor boost up to 3.2GHz, 32GB RDIMM DDR4 ECC RAM (1TB Max, 12 Slots RDIMM DDR4 Slots), 10 x U.2/U.3 PCIe NVMe Gen4 x4 / SATA 6Gbps Slot, 2 x 25GbE , 2 x 2.5 GbE, 2 x PCIe Gen4 x16 slots, 2 x 550W Redundant PSU, Without Rail Kil (RAIL-B02)

#TS-h1090FU-7232P-32G-US
Get a Quote!

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

QNAP TS-h1090FU Storage
1 x Ethernet cables
1 x Power cords
40 x Flat head screw (for 2.5" HDD)
Quick Installation Guide
2 x Holder
2 x Hanger
2 x Drive tray keys

Overview:

The TS-h1090FU high-density NVMe all-flash storage is designed for providing extreme performance with high cost-efficiency. Featuring ten U.2 NVMe Gen 4 x4 SSD bays, the TS-h1090FU delivers remarkable random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Ideal for I/O-intensive and latency-sensitive applications, the TS-h1090FU eliminates productivity bottlenecks in virtualization, modern data centers, multimedia storage, and mission-critical backup/restore tasks－suitable for Tier 2 storage workloads with an ideal low cost-per-GB.

High-density all flash storage

Space-efficient with only 58cm depth compared to 80+cm depth in a 1U rackmount server; accommodates ten U.2 NVMe PCIe Gen 4 or SATA 6Gb/s SSD drive bays.

Optimized SSD performance and lifespan

Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.

25GbE future-proof connectivity

Accelerates virtualization, intensive file access, media transfer, and large backup/restoration tasks.

High-speed PCIe Gen 4 slots

Allows installing 10/25/40/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.

Virtualization applications

Supports virtualization storage, virtual machines with SR-IOV support, and containerized apps.

Flexible storage expansion

Scalable design to grow with your business by connecting QNAP’s economical expansion enclosures.

Build high-performance storage infrastructure for IOPS-demanding applications

Virtualization

Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).

Data Centers

Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.

Media and Entertainment (M&E) production

Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.

Features:

Powerful, reliable, and multitasking with up to 1 TB DDR4 ECC memory

The TS-h2490FU is armed with 2nd Gen AMD EPYC™ 7002 series processors (Rome). Based on the “Zen 2” architecture with cutting-edge 7nm process technology, up to 128 PCIe lanes of I/O are provided for 32Gb/s dedicated bandwidth per SSD. With DDR4 ECC memory that detects and corrects single-bit memory errors for higher reliability, the TS-h2490FU provides 8-channel modules and 16 Long-DIMM slots to fulfill memory-intensive workloads. Demonstrating immense computing power and multi-tasking capabilities, the TS-h2490FU is the ideal choice for uncompromising performance demands in HPC, virtualization, and hybrid/multi-cloud applications.

AMD EPYC™ processors

Virtualization Certifications Supported by TS-h1090FU

Check QNAP NAS with Support for Virtualization application

U.2 NVMe PCIe Gen 4 x4 – faster speed, optimal I/O, and lower latency

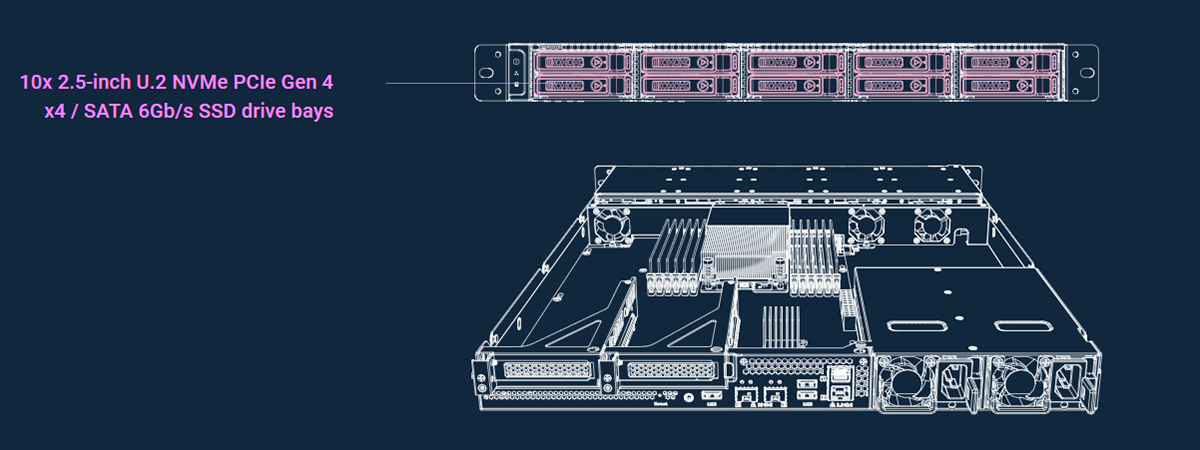

The 1U rackmount TS-h1090FU has 10 drive bays that support high-performance U.2 NVMe PCIe Gen 4 x4 SSDs or economical SATA 6Gb/s SSDs. Latency-sensitive applications can be bolstered with U.2 NVMe PCIe SSDs to attain optimized performance and utmost application response times. Coupled with powerful ZFS data deduplication and SSD optimization technologies, the TS-h1090FU provides solid foundations for overcoming performance demands while also maximizing your SSD investments!

Leverage the M.2 PCIe NVMe SSD to U.2 Adapter

Install one or more QDA adapters in the TS-h1090FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 PCIe NVMe SSD instead of the U.2 SSD for optimizing data-intensive applications. It can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA adapter is hot swappable.

QDA-U2MP：Accommodates two M.2 PCIe 3.0 x4 NVMe SSDs
QDA-UMP4：Accommodates an M.2 PCIe 4.0 x4 NVMe SSD (Compatible with PCIe 3.0 SSD)

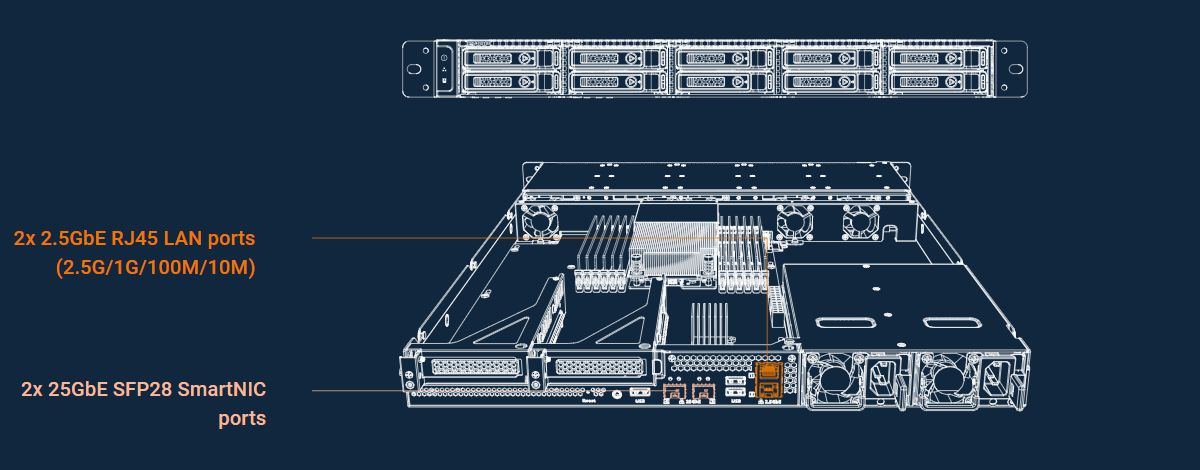

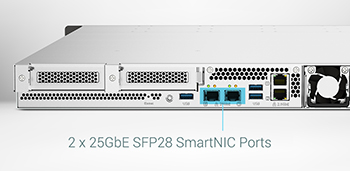

Dual 25GbE connectivity multiplies all-flash superior performance

The NVMe-ready TS-h1090FU provides breakthrough network connectivity with two 25GbE SFP28 SmartNIC ports (compatible with 10GbE SFP+ / 1GbE SFP) that also support iSCSI Extensions for RDMA (iSER) to increase performance of data transfer between NAS and VMware® ESXi server and offload CPU workloads. With Port Trunking and Auto-Negotiation, the TS-h1090FU empowers your organization with the bandwidth and reliability to allow thousands of endpoint users to smoothly access data stored on the NAS while satisfying the most performance-demanding applications. The TS-h1090FU is also ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE/25GbE switches to form high-speed, secure, and scalable network environments without going over budget.

ts-h1090fu_broadcom_nvidia

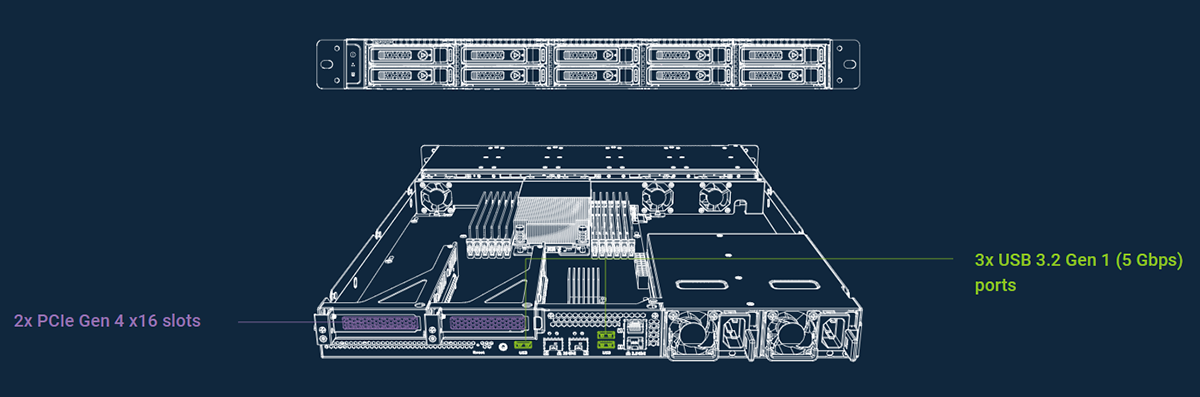

Multiple PCIe Gen 4 slots for flexible expansion

The TS-h1090FU is equipped with two PCIe Gen 4 slots. With twice the I/O performance of PCIe Gen 3, the TS-h1090FU can take advantage of PCIe cards to expand application potential.

10/25/40/100GbE network cards

Enable lightning-fast throughput for bandwidth-hungry tasks (such as virtualization, massive data transmission, and fast backup/restoration).

QM2 cards

Add M.2 SSD caching or 2.5GbE/10GbE connectivity for optimized performance or bandwidth.

SATA storage expansion cards

Designed for connecting the TS-h1090FU to SATA 6Gb/s TL expansion units to satisfy the ever-growing storage capacity.

ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data integrity is key	Data reduction improves storage efficiency and performance	Multi-level cache technology
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.	Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.	Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection	QSAL (QNAP SSD Antiwear Leveling) enhances data protection	App Center ecosystem extends NAS functionality
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.	RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.	Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the NAS.

Inline data deduplication, compression, and compaction improve SSD endurance

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h1090FU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.

big-data-storage

More SSD performance and lifespan optimization technologies

Write Coalescing

Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.

Pool Over-provisioning

Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.

TRIM

Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.

Comprehensive backup and disaster recovery solution

The TS-h1090FU supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

Remote backup for NAS

Hybrid Backup Sync makes it easy to back up data from a TS-h1090FU to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup

Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup

Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.

Note: Minimum memory requirements are 2 GB available and 4 GB installed.

Cloud backup for NAS

Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology

Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Real-time SnapSync

Real-time SnapSync immediately synchronizes data changes with the destination storage, ensuring the primary and secondary NAS always have the same data. RPO is minimal to achieve real-time disaster recovery.

Note: SnapSync is supported by QNAP NAS models featuring the QuTS hero (4.5.3 or later) and QES ( v2.1.1 or later) operating systems. These NAS can be paired with each other to provide a perfect backup storage solution.

Multi-version snapshots mitigate ransomware threats

The TS-h1090FU supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

business-anti-ransomware-image

Up to 65,536 snapshots

QuTS hero supports enough snapshots for you to create 1 snapshot every hour for 7 years without needing to delete any! Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing.

Back up snapshots

Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-h1090FU to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

Comprehensive security and privilege settings

The TS-h1090FU is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

Simplified privilege settings

The TS-h1090FU supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall protection

Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN

A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-h1090FU as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

QuWAN SD-WAN

To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.

Security Counselor

A security portal for the TS-h1090FU to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover

Regularly scan your TS-h1090FU using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

All-in-one solution for hosting virtual machines and containers

By running multiple virtual machines and containers on the TS-h1090FU, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Container Station

Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.

Single Root I/O Virtualization (SR-IOV)

By installing an SR-IOV compatible PCIe SmartNIC in the TS-h1090FU, you can allocate bandwidth resources from a physical network card directly to VMs, increasing network efficiency and reduced CPU overheads.

Note: SR-IOV is supported by specific QNAP NAS models and should work with SR-IOV compatible adapters.

QuTScloud virtual NAS

QuTScloud is a virtual appliance based on the QTS operating system. Enterprises can quickly launch QuTScloud on hypervisors including Linux® KVM, Microsoft® Hyper-V, and VMware ESXi™ to acquire advanced NAS features without requiring additional NAS hardware.

Reliable, high-performance storage for virtualization

The TS-h1090FU supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.

The best file storage and collaboration center

The TS-h1090FU integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

File Station

Manage, access, and share all the files in the TS-h1090FU and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Qsync

Make any file uploaded to a TS-h1090FU available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

Qsirch

QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Free exFAT support

exFAT is a file system that supports files up to 16EB and is optimized for flash storage (such as SD cards and USB devices) - helping accelerate large media file transfer and sharing.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h1090FU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Flexible and economical storage expansion

QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-h1090FU storage as needed to accommodate data and business growth.

Attach QNAP expansion enclosures

Connect expansion enclosures to the TS-h1090FU, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers

Mount cloud storage or remote file servers to expand the capacity of the TS-h1090FU while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity

Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

More productivity-boosting applications

The TS-h1090FU provides an App Center that includes feature-rich apps to expand your NAS potential!

QuMagie

An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tools for the ultimate photo management and sharing solution.

QuObjects

Run a high-performance S3 compatible development environment on your TS-h1090FU to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.

Notification Center

Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

A health check for your hard drives

Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.

S.M.A.R.T. and back block scanning

If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.

DA Drive Analyzer

The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

Seagate® IronWolf™ Health Management

When using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.

Switch operating systems for higher everyday performance

The TS-h1090FU also supports QTS - QNAP’s standard NAS operating system – that provides greater everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TS-h1090FU.

Note: QTS and QuTS hero use different file systems. You must remove all the drives from the TS-h1090FU before switching from QuTS hero to QTS.

business-quts-hero-to-qts-image

5-year warranty as standard

The TS-h1090FU is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.

Hardware Specifications:

TS-h1090FU-7302P-256G (By Request)

CPU	AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
CPU Architecture	64-bit x86
Encryption Engine	(AES-NI)
System Memory	256 GB RDIMM DDR4 ECC
Maximum Memory	1 TB+ (12 x 128 GB)
Memory Slot	12 x RDIMM DDR4
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD.
Drive Compatibility	2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
25 Gigabit Ethernet Port	2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)	Only the 2.5GbE port
Jumbo Frame
PCIe Slot	2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only.
USB 3.2 Gen 1 Port	3
Form Factor	Rackmount
LED Indicators	Disk, Status, LAN, storage expansion port status
Buttons	Power, Reset
Dimensions (HxWxD)	1.73 × 16.93 × 22.91 inch
Weight (Net)	25.57 lbs
Weight (Gross)	29.54 lbs
Operating Temperature	0 – 40°C (32°F – 104°F)
Storage Temperature	-20 – 70°C (-4°F – 158°F)
Relative Humidity	5–95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit	550W PSU (×2), AC 100–240 V
Power Consumption: Operating Mode, Typical	157.97 W Tested with drives fully populated.
Fan	5 × 60mm, 12VDC
System Warning	Buzzer
Standard Warranty	5 years
Max. Number of Concurrent Connections (CIFS) – with Max. Memory	10,000

TS-h1090FU-7302P-128G

CPU	AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
CPU Architecture	64-bit x86
Encryption Engine	(AES-NI)
System Memory	128 GB RDIMM DDR4 ECC
Maximum Memory	1 TB+ (12 x 128 GB)
Memory Slot	12 x RDIMM DDR4
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD.
Drive Compatibility	2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
25 Gigabit Ethernet Port	2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)	Only the 2.5GbE port
Jumbo Frame
PCIe Slot	2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only.
USB 3.2 Gen 1 Port	3
Form Factor	Rackmount
LED Indicators	Disk, Status, LAN, storage expansion port status
Buttons	Power, Reset
Dimensions (HxWxD)	1.73 × 16.93 × 22.91 inch
Weight (Net)	25.57 lbs
Weight (Gross)	29.54 lbs
Operating Temperature	0 – 40°C (32°F – 104°F)
Storage Temperature	-20 – 70°C (-4°F – 158°F)
Relative Humidity	5–95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit	550W PSU (×2), AC 100–240 V
Power Consumption: Operating Mode, Typical	157.97 W Tested with drives fully populated.
Fan	5 × 60mm, 12VDC
System Warning	Buzzer
Standard Warranty	5 years
Max. Number of Concurrent Connections (CIFS) – with Max. Memory	10,000

TS-h1090FU-7302P-64G

CPU	AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
CPU Architecture	64-bit x86
Encryption Engine	(AES-NI)
System Memory	64 GB RDIMM DDR4 ECC
Maximum Memory	1 TB+ (12 x 128 GB)
Memory Slot	12 x RDIMM DDR4
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD.
Drive Compatibility	2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
25 Gigabit Ethernet Port	2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)	Only the 2.5GbE port
Jumbo Frame
PCIe Slot	2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only.
USB 3.2 Gen 1 Port	3
Form Factor	Rackmount
LED Indicators	Disk, Status, LAN, storage expansion port status
Buttons	Power, Reset
Dimensions (HxWxD)	1.73 × 16.93 × 22.91 inch
Weight (Net)	25.57 lbs
Weight (Gross)	29.54 lbs
Operating Temperature	0 – 40°C (32°F – 104°F)
Storage Temperature	-20 – 70°C (-4°F – 158°F)
Relative Humidity	5–95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit	550W PSU (×2), AC 100–240 V
Power Consumption: Operating Mode, Typical	157.97 W Tested with drives fully populated.
Fan	5 × 60mm, 12VDC
System Warning	Buzzer
Standard Warranty	5 years
Max. Number of Concurrent Connections (CIFS) – with Max. Memory	10,000

TS-h1090FU-7232P-64G

CPU	AMD EPYC™ 7232P/7252 8-core/16-thread processor, up to 3.2 GHz
CPU Architecture	64-bit x86
Encryption Engine	(AES-NI)
System Memory	64 GB RDIMM DDR4 ECC
Maximum Memory	1 TB+ (12 x 128 GB)
Memory Slot	12 x RDIMM DDR4
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD.
Drive Compatibility	2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
25 Gigabit Ethernet Port	2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)	Only the 2.5GbE port
Jumbo Frame
PCIe Slot	2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only.
USB 3.2 Gen 1 Port	3
Form Factor	Rackmount
LED Indicators	Disk, Status, LAN, storage expansion port status
Buttons	Power, Reset
Dimensions (HxWxD)	1.73 × 16.93 × 22.91 inch
Weight (Net)	25.57 lbs
Weight (Gross)	29.54 lbs
Operating Temperature	0 – 40°C (32°F – 104°F)
Storage Temperature	-20 – 70°C (-4°F – 158°F)
Relative Humidity	5–95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit	550W PSU (×2), AC 100–240 V
Power Consumption: Operating Mode, Typical	157.97 W Tested with drives fully populated.
Fan	5 × 60mm, 12VDC
System Warning	Buzzer
Standard Warranty	5 years
Max. Number of Concurrent Connections (CIFS) – with Max. Memory	10,000

TS-h1090FU-7232P-32G

CPU	AMD EPYC™ 7232P/7252 8-core/16-thread processor, up to 3.2 GHz
CPU Architecture	64-bit x86
Encryption Engine	(AES-NI)
System Memory	32 GB RDIMM DDR4 ECC
Maximum Memory	1 TB+ (12 x 128 GB)
Memory Slot	12 x RDIMM DDR4
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD.
Drive Compatibility	2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
25 Gigabit Ethernet Port	2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)	Only the 2.5GbE port
Jumbo Frame
PCIe Slot	2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only.
USB 3.2 Gen 1 Port	3
Form Factor	Rackmount
LED Indicators	Disk, Status, LAN, storage expansion port status
Buttons	Power, Reset
Dimensions (HxWxD)	1.73 × 16.93 × 22.91 inch
Weight (Net)	25.57 lbs
Weight (Gross)	29.54 lbs
Operating Temperature	0 – 40°C (32°F – 104°F)
Storage Temperature	-20 – 70°C (-4°F – 158°F)
Relative Humidity	5–95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit	550W PSU (×2), AC 100–240 V
Power Consumption: Operating Mode, Typical	157.97 W Tested with drives fully populated.
Fan	5 × 60mm, 12VDC
System Warning	Buzzer
Standard Warranty	5 years
Max. Number of Concurrent Connections (CIFS) – with Max. Memory	10,000

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site. Designs and specifications are subject to change without notice.

Robust hardware paralleled to boost all-flash NVMe performance

TS-h1090FU features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access.

All-flash NVMe storage

Powerful processor and memory

High speed networking slots

Flexible expansion slots

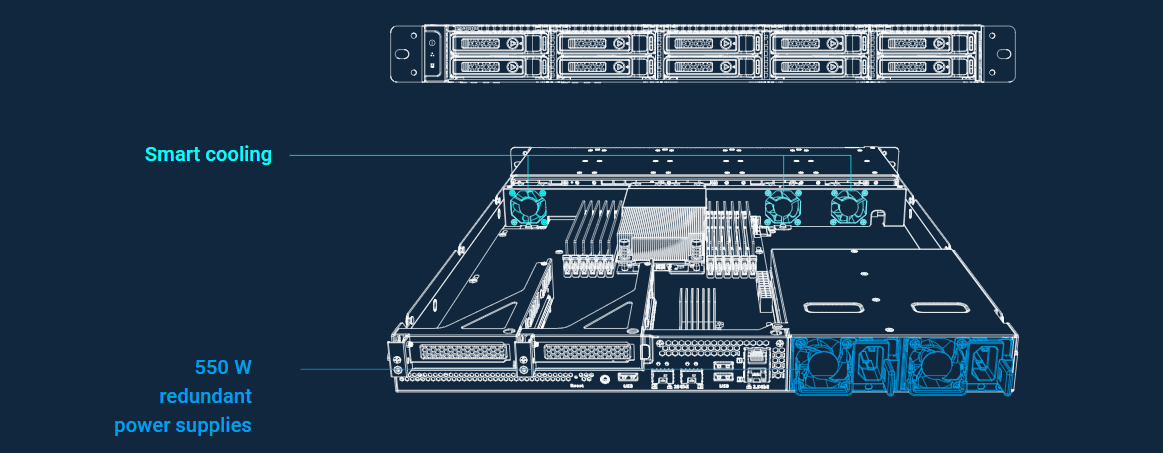

Others

Pricing Notes:

Pricing and product availability subject to change without notice.

QNAP Products

#TS-h1090FU-7302P-256G-US
Get a Quote!

#TS-h1090FU-7302P-128G-US
Get a Quote!

#TS-h1090FU-7302P-64G-US
Get a Quote!

#TS-h1090FU-7232P-64G-US
Get a Quote!

#TS-h1090FU-7232P-32G-US
Get a Quote!

Storage Expansion Card

Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4)
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
*shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3

#QM2-2P-244A
Get a Quote!

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
TVS-hx74, TVS-1282T3, TS-hx87XU-RP, TS-1655

#QM2-2P-344A
Get a Quote!

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface.
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

#QM2-2P-384A
Get a Quote!

QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8 , 1 x AQC113C 10GbE NBASE-T port

#QM2-2P10G1TB
Get a Quote!

QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port

#QM2-2P2G2T
Get a Quote!

Dual M.2 22110/2280 SATA SSD expansion card (PCIe Gen2 x2)
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
*shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3

#QM2-2S-220A
Get a Quote!

Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

#QM2-4P-384
Get a Quote!

Network Expansion Card

Dual-port QSFP28 100GbE network expansion card; low-profile form factor; PCIe Gen4 x16
TS-h2490FU

#QXG-100G2SF-E810
Get a Quote!

Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height bracksts are bundled
All NAS models with a PCIe slot.

#QXG-10G1T
Get a Quote!

Dual-port SFP+ 10GbE network expansion card; low-profile form factor; PCIe Gen3 x8
TS-470, TS-470 Pro, TS,473, TVS-472XT, TVS-473, TVS-473e, TS-670, TS-670 Pro, TS-673, TS-677, TVS-670, TVS-672XT, TVS-673, TVS-673e, TVS-682, TVS-682T, TS-870, TS-870 Pro, TS-870U-RP, TS-873, TS-877, TS-877XU, TS-877XU-RP, TS-883XU, TS-883XU-RP, TVS-870, TVS-872XT, TVS-872XU, TVS-872XU-RP, TVS-873, TVS-873e, TVS-882, TVS-882BR, TVS-882BRT3, TVS-882ST2, TVS-882ST3, TVS-882T, TS-1270U-RP, TS-1277, TS-1277XU-RP, TS-1283XU-RP, TVS-1272XU-RP, TVS-1282, TVS-1282T, TVS-1282T3, TS-1677XU-RP, TS-1683XU-R

#QXG-10G2SF-X710
Get a Quote!

Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen3 x4; Aquantia AQC107
All NAS models with a PCIe slot.

#QXG-10G2T
Get a Quote!

Dual-port (10GBASE-T) 10GbE network expansion card, Intel X710, PCIe Gen3 x4
PCIe supported NAS and Windows 8/10/Windows Server/Linux/uBuntu/ RHEL PCs. Visit https://www.qnap.com/go/compatibility for the compatibible NAS.

#QXG-10G2T-X710
Get a Quote!

Dual-port SFP28 25GbE network expansion card; low-profile form factor; PCIe Gen4 x8
PCIe supported NAS

#QXG-25G2SF-CX6
Get a Quote!

Dual-port SFP28 25GbE network expansion card; low-profile form factor; PCIe Gen4 x8
PCIe supported NAS

#QXG-25G2SF-E810
Get a Quote!

Single port 2.5GbE 4-speed Network card
PCIe supported NAS and Windows 10/ Windows Server 2016 & 2019 /Linux PCs. Visit https://www.qnap.com/go/compatibility for the compatibible NAS.

#QXG-2G1T-I225
Get a Quote!

Dual port 2.5GbE 4-speed Network card
PC/Server or NAS with a PCIe slot

#QXG-2G2T-I225
Get a Quote!

Quad port 2.5GbE 4-speed Network card
PC/Server or NAS with a PCIe slot

#QXG-2G4T-I225
Get a Quote!

QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
PCIe supported NAS

#QXG-5G1T-111C
Get a Quote!

Other Accessories

550W power supply unit, Delta
TS-1886XU-RP, TL-R1620Sep-RP, TS-1673AU-RP, TS-h3088XU-RP, TL-R1620Sdc

#PWR-PSU-550W-DT01
Get a Quote!

2.5" SSD Tray with key lock and two keys, black and metal
TS-h1290FX

#TRAY-25-BLK03
Get a Quote!

QNAP Rail Kit for 2U Rackmount Models
QGD-1600P, TL-R1200C-RP, TL-R1200S-RP, TL-R1220Sep-RP, TL-R1620Sep-RP, TL-R400S, TR-004U, TS-1231XU(-RP), TS-1232PXU-RP, TS-1232XU(-RP), TS-1232BU(-RP), TS-1253DU-RP, TS-1253U(-RP), TS-1263U(-RP), TS-1263XU(-RP), TS-1273AU-RP, TS-1273U(-RP), TS-1277XU-RP, TS-1283XU-RP, TS-1673AU-RP, TS-1886XU-RP, TS-h1886XU-RP, TS-431U, TS-431XU(-RP), TS-431XeU, TS-432PXU-RP, TS-432XU(-RP), TS-451DeU, TS-453BU(-RP), TS-453DU(-RP), TS-463U(-RP), TS-463XU(-RP), TS-831XU(-RP), TS-832PXU(-RP), TS-832XU(-RP), TS-853B

#RAIL-B02
Get a Quote!

Interface Expansion

4-port miniSAS HD host bus adapter, Broadcom Aero SAS3816, PCIe 4.0 x 8 for TL SAS JBOD series

#QXP-1630S-3816
Get a Quote!

16G Fibre Channel Host Bus Adapter, 2 x transceivers are included

#QXP-16G2FC
Get a Quote!

32G Fibre Channel Host Bus Adapter, 2 x transceivers are included

#QXP-32G2FC
Get a Quote!

2 ports (SFF-8644) Expansion card; PCIe Gen3 x4 for QNAP PCIe JBOD series. Recommend installed in TS-h3087XU-RP, TS-h2287XU-RP, TS-h1887XU-RP, TS-h2490FU, TS-855eU(RP), also support TS-h987XU-RP, TDS-h2489FU, TS-h1090FU speed up to 32Gbps.

#QXP-3X4PES
Get a Quote!

2 ports (SFF-8644 1x2) Expansion card; PCIe Gen3 x8 for QNAP PCIe JBOD series. Recommend installed in TS-h987XU-RP, TDS-h2489FU, TS-h1090FU speed up to 64Gbps, also support TS-h3087XU-RP, TS-h2287XU-RP, TS-h1887XU-RP, TS-h2490FU, TS-855eU(RP) speed up to 32Gbps

#QXP-3X8PES
Get a Quote!

2-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series

#QXP-820S-B3408
Get a Quote!

Cable / Transceiver

QNAP, Optical Transceiver 10GbE SFP+ 850nm SR up to 300m industrial-temperature (-40 ~85)
For use with SFP+ 10GbE wide-range temperature

#TRX-10GITSFPP-SR
Get a Quote!

Optical Transceiver 25GbE SFP28 LC-LC 850nm SR up to 100m
For use with SFP28 25GbE

#TRX-25GSFP28-SR
Get a Quote!

SFP+ 10GbE twinaxial direct attach cable, 1.5M, S/N and FW update
For use with SFP+ 10GbE

#CAB-DAC15M-SFPP
Get a Quote!

SFP28 25GbE twinaxial direct attach cable, 3.0M
For use with SFP28 25GbE (replacement of CAB-DAC30M-SFP28-DEC01)

#CAB-DAC30M-SFP28
Get a Quote!

SFP+ 10GbE twinaxial direct attach cable, 3.0M, S/N and FW update
For use with SFP+ 10GbE

#CAB-DAC30M-SFPP
Get a Quote!

SFP+ 10GbE twinaxial direct attach cable, 5.0M, S/N and FW update
For use with SFP+ 10GbE

#CAB-DAC50M-SFPP
Get a Quote!
