QNAP TS-h886
Intel® Xeon® D desktop QuTS hero NAS with four 2.5GbE ports, designed for real-time SnapSync data backup and virtual machine applications
Intel Xeon D-1602 2.5GHz, 8GB ECC RAM (max 128GB), 4 x 2.5GbE, iSCSI, RAID 0,1, 5, 6, 10, 5+spare, 6+spare, 10+spare, global hot spare, PCIe expansion slot x2, 250W single power supply
Our Price: $1,499.00
Want to build a custom bundle? Contact us!
Click here to jump to more pricing!
Package Content
- QNAP TS-h886 Storage
- 2 x Ethernet cables
- 2 x 10GBASE-T Ethernet cable
- 1 x Power cords
- 18 x Flat head screw (for 3.5" HDD)
- 24 x Flat head screw (for 2.5" HDD)
- 3 x M.2 SSD Heatsink
- Quick Installation Guide
Overview:
Delivering enterprise performance at SMB prices, the TS-h886 features an Intel® Xeon® D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h886 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. The TS-h886 helps your business achieve reliable service-level agreement performance in various use cases, including mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications.
Available Models
- TS-h886-D1622-16G-
- Intel® Xeon® D-1622 4 cores/8 threads 2.6 GHz processor (Turbo Boost up to 3.2 GHz), 16 GB DDR4 ECC memory (2 x 8 GB)
Four 2.5GbE ports accelerate file sharing across teams and devices, virtual machine applications or multimedia transmission.
Supports SSD caching to boost IOPS performance, Qtier for auto-tiered storage, and software-defined SSD extra over-provisioning to combat write amplification and optimize SSD performance and lifespan.
Two M.2 NVMe Gen 3 x4 SSD slots (each slot providing up to 3.2 GB/s bandwidth) enable SSD caching to boost random read/write performance.
Two PCIe slots allow for 5GbE/10GbE/25GbE/40GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.
Scalable storage supporting virtual machines, containerized apps, centralized storage, backup, sharing, and disaster recovery.
QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.
Features:
Powerful Intel® Xeon® D processor with up to 128 GB DDR4 ECC memory
The TS-h886 uses an Intel® Xeon® D-1600 series processor and DDR4 ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss. Supporting up to 128 GB RAM to cope with higher workloads, the TS-h886 provides a high-performance and reliable NAS solution for demanding business IT environments.
Set SSD caching to boost IOPS with M.2 NVMe SSD
While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-h886 comes with two 2.5-inch SSD drive bays and two M.2 NVMe Gen3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance and reduce storage volume latency. This is especially perfect for databases and virtual machine applications. Without occupying any 3.5-inch drive bays, the TS-h886 allows you to maximize both your storage capacity and performance.
Quad-port 2.5GbE meets today’s high-bandwidth demands
Featuring four native 2.5GbE RJ45 LAN ports (backwards compatible with 1G/100M), the TS-h886 allows you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The support of Port Trunking and failover further satisfies bandwidth and reliability demanding applications including virtualization, large file transfers, high-speed backup/restoration, and any real-time application. QNAP also offers numerous options of managed and unmanaged 10GbE/2.5GbE switches, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
| Data integrity is key | RAID Z enables robust data protection | Multi-level cache technology with both read and write | App Center ecosystem extends NAS functionality |
|---|---|---|---|
| QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many Times (WORM) is also supported by QuTS hero. | Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection. | Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions are simultaneously supported to boost performance. | Apps for backup/sync, business, content management, productivity, and more features can be installed on demand to expand the application potential of the TS-h886. |
Tiered storage configuration for a QuTS hero NAS
Follow these steps to acquire optimal storage efficiency and performance for QuTS hero.
| Step 1: System Drive | Step 2: Read Cache & ZIL | Step 3: Data Storage |
|---|---|---|
| The first Storage Pool you create is the system drive. Using an SSD RAID with at least two SSDs for the system drive is recommended. | Use more SSDs for read cache or ZIL. You can also install QM2 expansion cards to add M.2 SSDs for expanding cache space. | Allocate HDDs/SSDs to create a RAID for storing files and application data. If needed, you can configure an all-flash configuration for optimal performance. |
Inline data deduplication, compression, and compaction drives big data storage efficiency
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h886 optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
The TS-h886 also supports snapshots and remote backup that help organizations accomplish routine backup tasks cost-effectively and efficiently.
Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h886 to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.

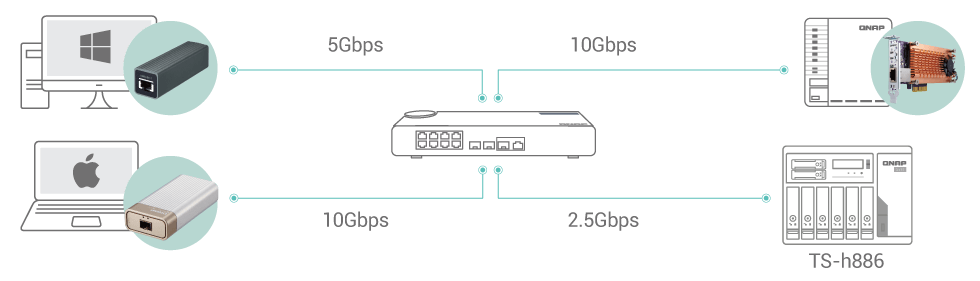

PCIe expansion for upgrading 10GbE transmission or enabling GPGPU computing
The TS-h886 features two PCIe Gen 3 x8 slots (each slot provides up to 64 Gb/s bandwidth) and supports installing expansion cards to enable additional functions and greater application potential.
Move business data to the cloud and enjoy low latency access to cloud-based data
The TS-h886 perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-h886 using M.2 SSD slots (M.2 SSDs purchased separately), organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.
HybridMount File-based Cloud Gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud Block-based Cloud Gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
Switch operating systems to upgrade current storage
The TS-h886 can also switch to using QTS - QNAP’s standard NAS operating system. This allows you to migrate drives from your current QTS-based NAS to the more powerful TS-h886 to upgrade your storage infrastructure.
Attention: QTS and QuTS hero use different file systems. You must remove all the drives from the TS-h886 before switching from QuTS hero to QTS.
More productivity applications
Security Counselor
A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Qsirch
QNAP’s powerful, Google-like search tool for quickly finding specific images, music, videos, documents, and emails by keywords, color, and more search conditions.
Boxafe
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ G Suite and Microsoft® Office 365® to the TS-h886.
Extend hardware warranty up to 5 years
The TS-h886 is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Hardware Specifications:
| TS-h886-D1622-16G | |
|---|---|
| CPU | Intel® Xeon® D-1622 quad-core 2.6 GHz processor (burst up to 3.2 GHz) |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 16 GB UDIMM DDR4 ECC (2 x 8 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x Long-DIMM DDR4 For dual-DIMM configurations, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 SSD Slot | 2 x M.2 2280/22110 NVMe Gen3 x4 slots |
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 |
| Jumbo Frame | |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x8 Slot 2: PCIe Gen 3 x8 |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Tower |
| LED Indicators | System status, 2.5” SSD, M.2 SSD, 3.5” HDD |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 9.13 × 11.53 × 12.59 inch |
| Weight (Net) | 18.74 lbs |
| Weight (Gross) | 22.29 lbs |
| Operating temperature | 0 - 35 °C (32°F - 95°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Input: 100-240V~, 3-1.5A, 60-50Hz; Output 250W |
| Power Consumption: Operating Mode, Typical | 75.79 W Tested with drives fully populated. |
| Fan | System fan: 2 x 80mm CPU fan: 1 x 97mm |
| Sound Level | 20.4 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.
Hybrid Storage with high I/O expandability
| 1 | 2x 2.5-inch SSD bays | Offers flexible configuration for cache acceleration. |
| 2 | 6x 3.5-inch drive bays | Supports SATA 6 Gb/s drives; lockable trays. |
| 3 | 2x PCIe Gen 3 x8 expansion slots | Supports 5GbE/ 10GbE/ 25GbE/ 40GbE network expansion cards, QM2 cards, graphics cards, or QXP PCIe SATA expansion cards for greater application potential. |
| 4 | 4x 2.5GbE LAN ports | Supports Port Trunking and failover. |
| 5 | Smart cooling | The system fans automatically adjust their speed based on system temperatures. |
| 6 | 2x USB 3.2 Gen 1 ports | Delivers transfer speeds up to 5 Gbps. |
| 7 | 2x M.2 SSD slots | Supports NVMe Gen 3 x4 M.2 SSD with the 2280/22110 form factors for enabling cache acceleration. Note: M.2 SSD sold separately. |
| 8 | DDR4 ECC memory | Four DDR4 Long-DIMM slots supporting up to 128 GB RAM |
| 9 | Intel® Xeon® D processor | Intel® Xeon® D series processor with multi-core computing power and up to 3.2 GHz speeds. |
Product Views:

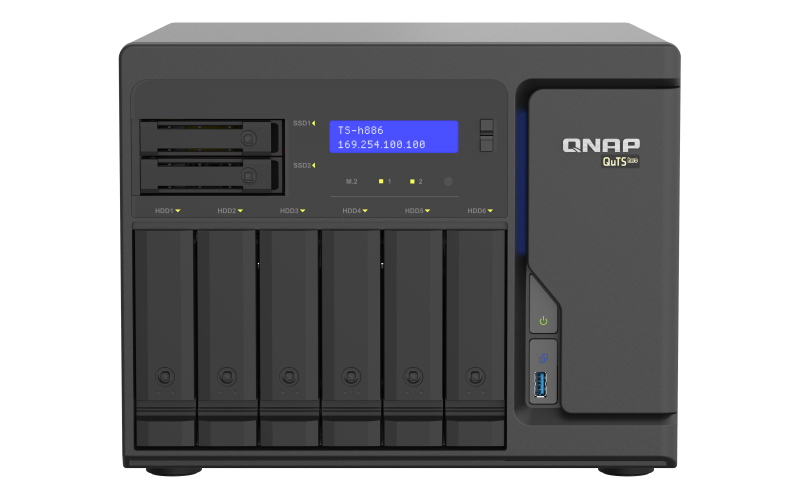

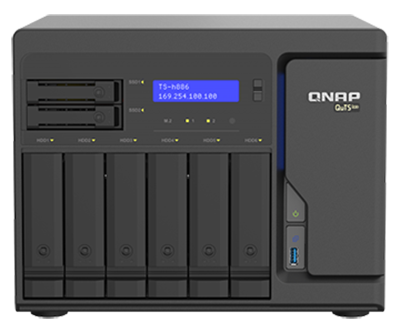

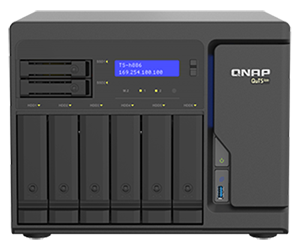

 Front View |

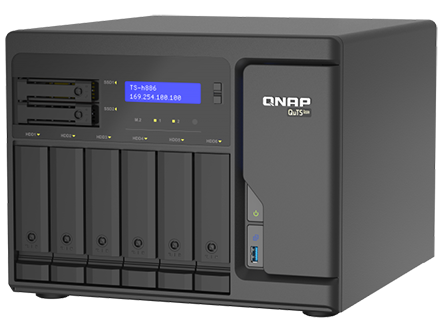

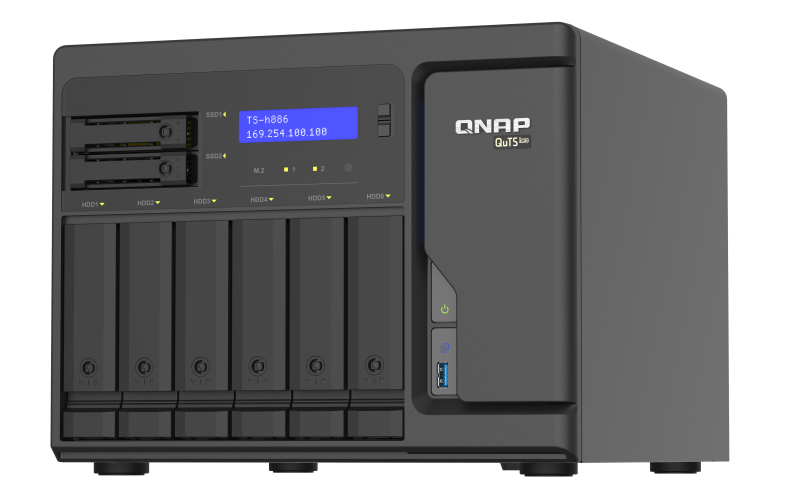

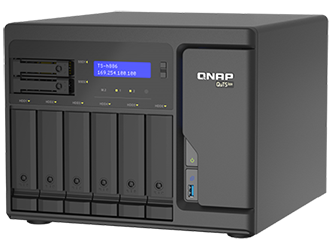

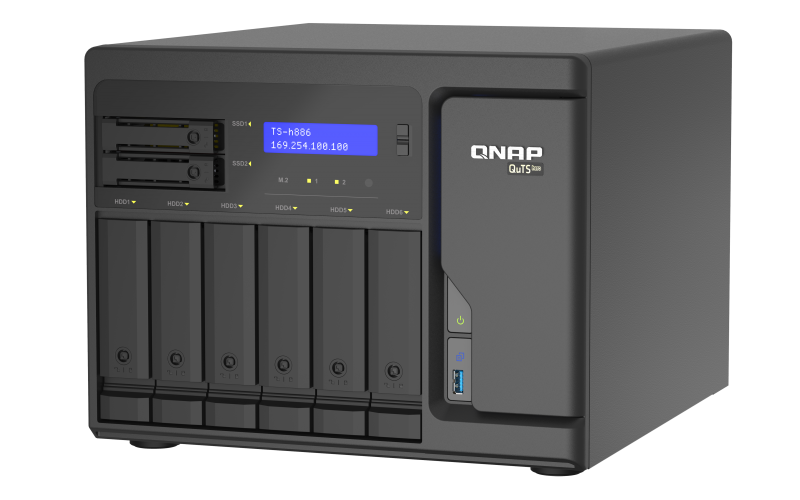

 Right Angle View |

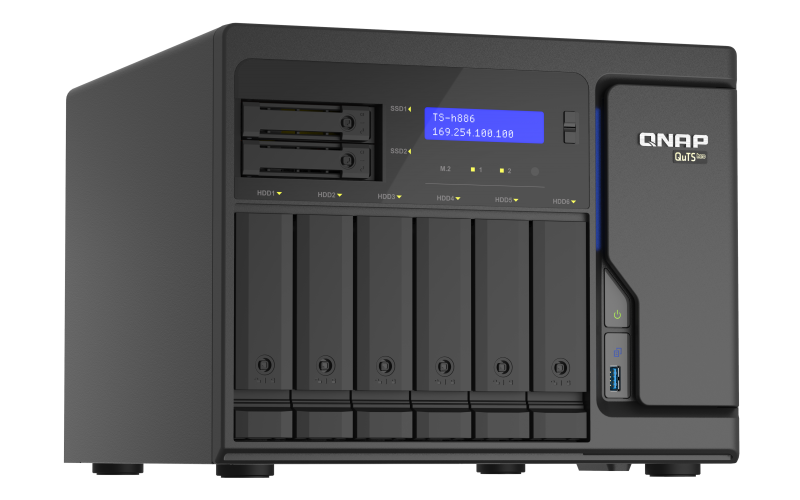

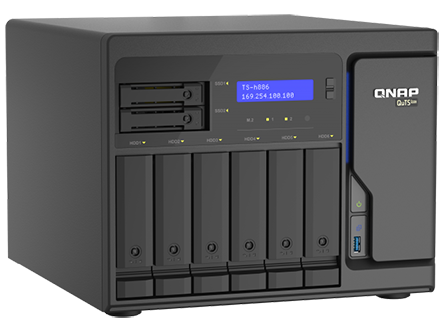

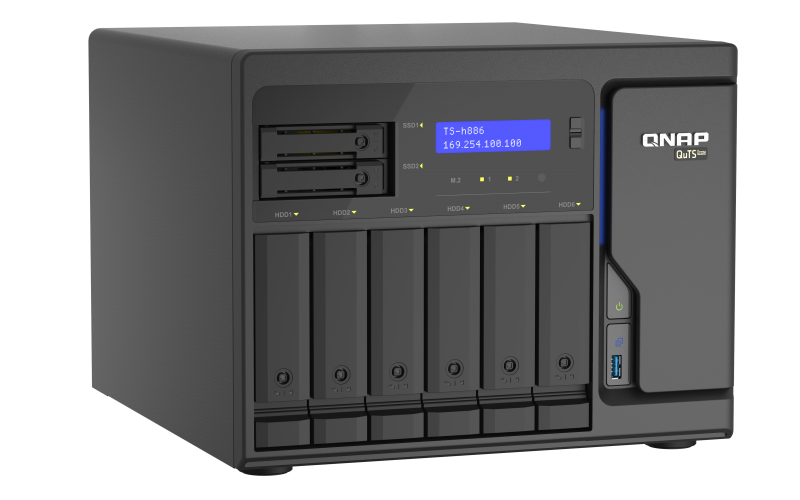

 Left Angle View |

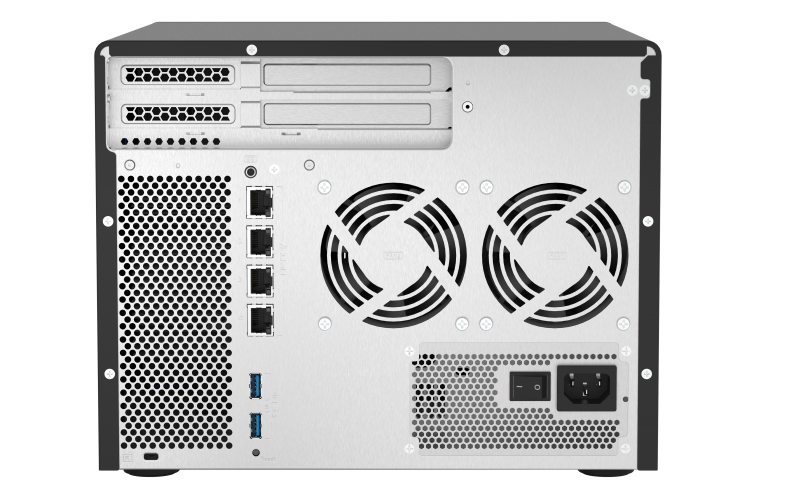

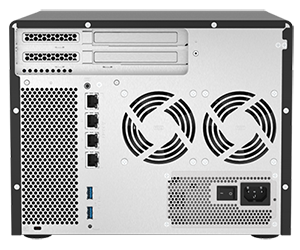

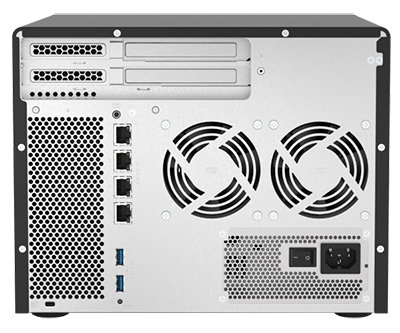

 Rear View |
Documentation:
Datasheet for QNAP TS-h886 is coming soon.
